2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Transmission Control Device: Removal
- Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .
- Remove the oil pan and control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
- Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>REMOVAL .

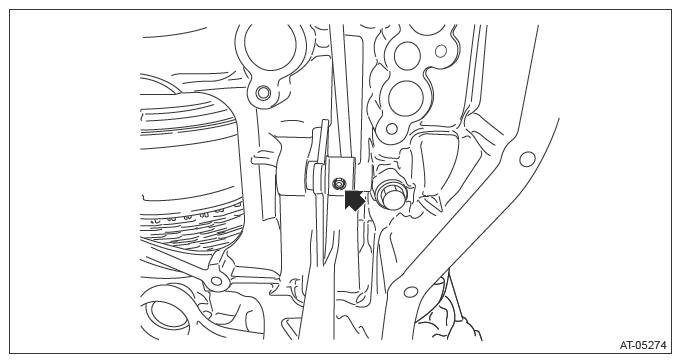

- Remove the straight pin.NOTE: Prevent the straight pin from dropping in the transmission using paper towel, etc.

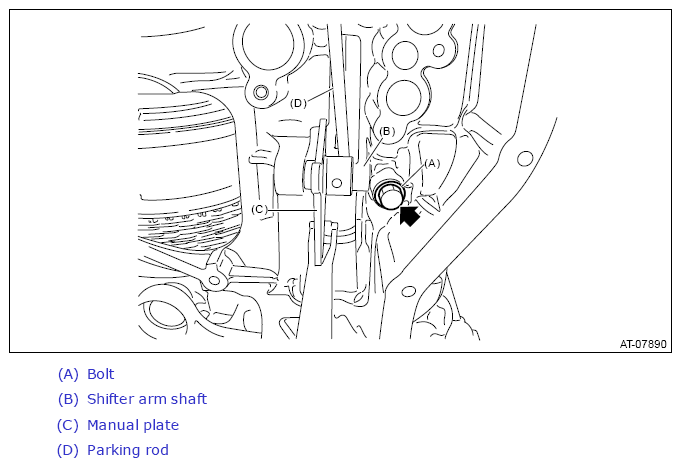

- Remove the bolts and remove the shifter arm shaft, manual plate and parking rod.NOTE: Do not damage the lip portion of oil seal press-fitted in the transmission case.

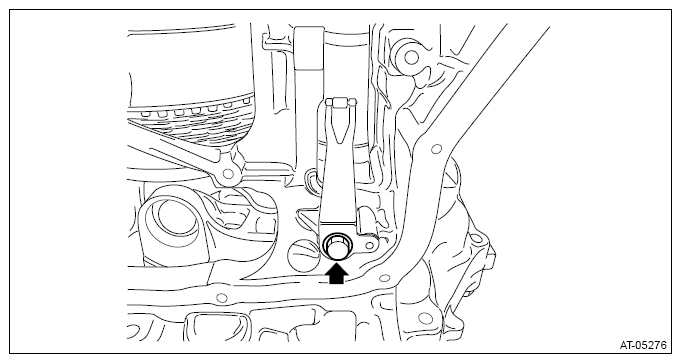

- Remove the detent spring.
