2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Front Wheel Speed Sensor: Removal
CAUTION:
- If water or oil contacts the connector terminal of front wheel speed sensor, replace it with a new part.
- If CVTF has leaked when the front wheel speed sensor is removed, adjust the CVTF level after installing the front wheel speed sensor.
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Clean the transmission exterior.
- Disconnect the front wheel speed sensor harness connector.

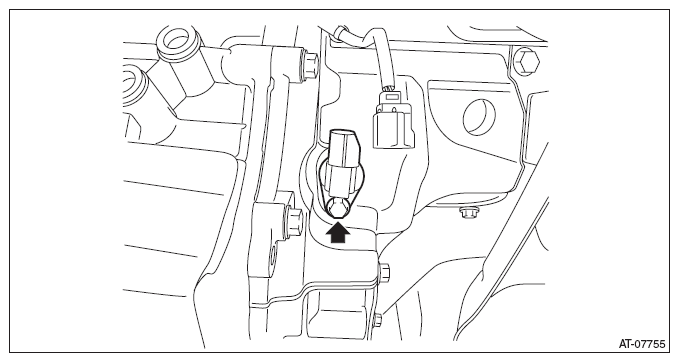

- Remove the front wheel speed sensor.
CAUTION:
After removing the sensors, plug the holes to avoid foreign materials intruding as necessary.
