2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Differential Case Assembly

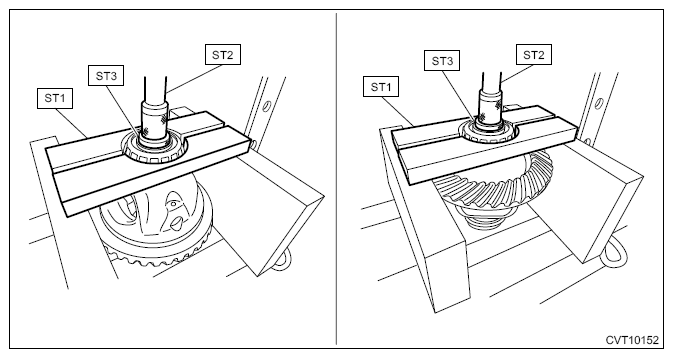

- Remove the side bearing inner race using ST1, ST2, ST3 and a press.
Preparation tool:
ST1: REMOVER (498077000)
ST2: REMOVER (899864100)
ST3: SEAT (398497701)

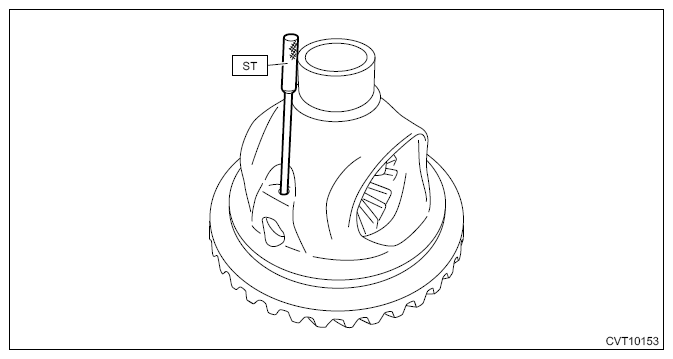

- Using the ST, remove the spring pin.
Preparation tool:
ST: STRAIGHT PIN REMOVER (899904100)

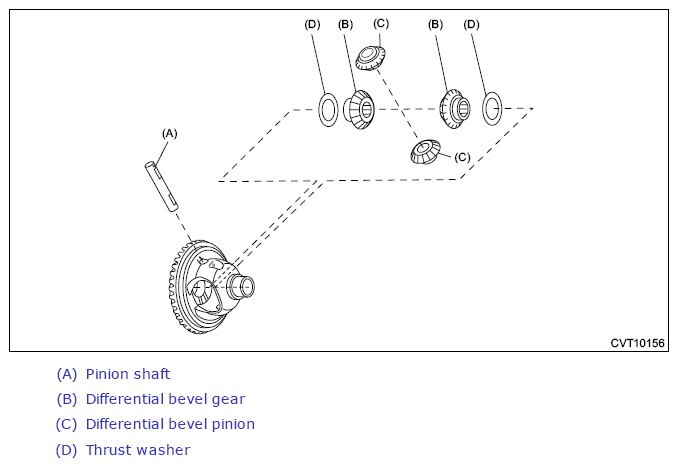

- Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and thrust washer.
