Drive Plate: Installation
- Temporarily install the drive plate and reinforcement drive plate.

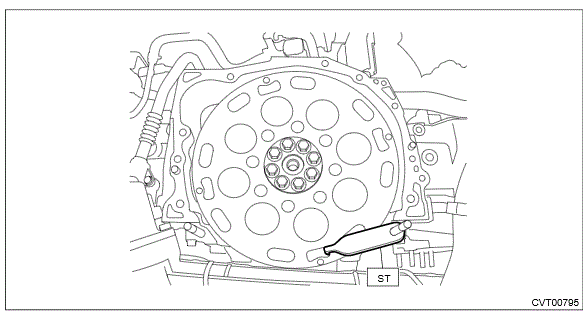

- Set the ST in the position shown in the figure.
Preparation tool:
ST: CRANKSHAFT STOPPER (498497300)

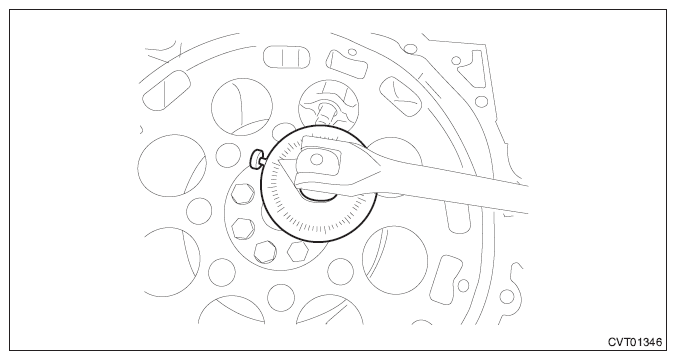

- Tighten the drive plate mounting bolt in two stages.NOTE: Fix the engine unit.
- Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
