2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Front Strut: Removal

  1. Lift up the vehicle, and then remove the front wheels.

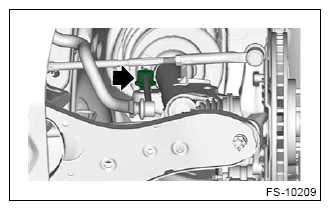

  2. Disconnect the stabilizer link front (upper part) on the left and right sides.
    G13199351Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the brake hose bracket.
    G13199352Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the sensor sub assembly front.
    G13199353Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the strut assembly.

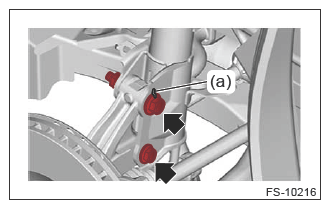

    1. Place an alignment mark (a) on the adjusting bolt and the strut assembly.
    2. Remove the adjusting bolts and flange bolts for the strut assembly.
      CAUTION: While holding the adjusting bolt side, tighten the nut side.
      G13199354Courtesy of SUBARU OF AMERICA, INC.

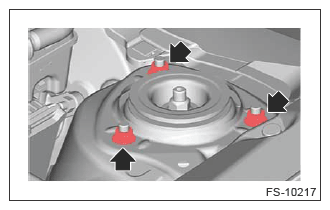

    3. Remove the three nuts securing the mount strut front to the body.
      G13199355Courtesy of SUBARU OF AMERICA, INC.
