Fuel Insulator: Installation
- If substantial amount of fuel or parts cleaner come into contact with the fuel insulator, replace it with a new one.
- If only small amount of fuel comes into contact with the fuel insulator, wait for the fuel evaporate before installing it.

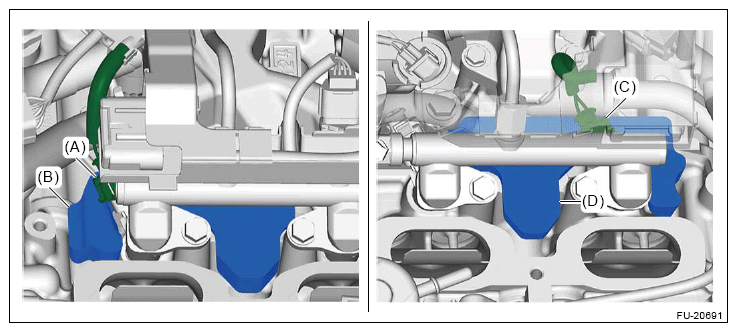

- Install the fuel pipe insulator No. 1 (B), and connect the connector (A) to the fuel injector #3.
- Install the fuel pipe insulator No. 5 (D), and connect the connector (C) to the fuel injector #4.

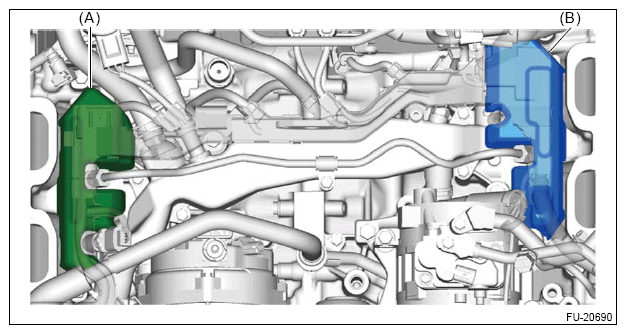

- Install the fuel pipe insulator No. 2 (A) and fuel pipe insulator No. 4 (B).

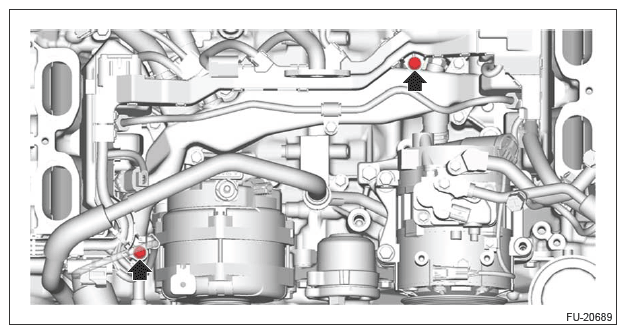

- Secure the engine wiring harness with the bolts.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

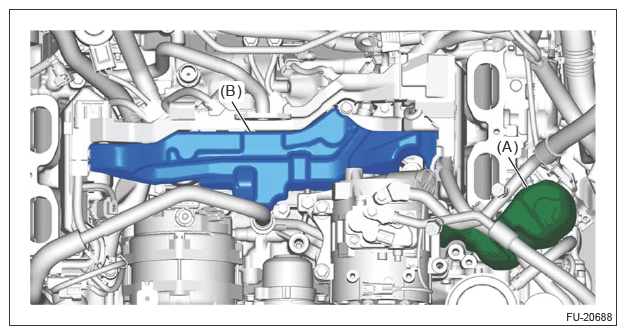

- Install the fuel pump insulator (A) and fuel pipe insulator No. 3 (B).
- Install the bracket air conditioner. Ref. to INSTALLATION .
- Temporarily install the bolt that secures the A/C compressor.
- Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>INTAKE MANIFOLD ASSEMBLY>INSTALLATION .
- Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
