Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

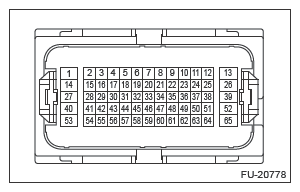

Disconnect the connector from ECM in numerical order as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.
Attach the ST between the ECM, engine wiring harness and the bulkhead wiring harness, Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .
Special Tool:

CHECK BOARD (18460AA150)
Connect the battery ground terminal, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Turn the ignition switch to ON. (Engine OFF)

Measure the voltage between ECM connector terminals.

Courtesy of SUBARU OF AMERICA, INC.

Throttle sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (full closed)	34 (+) and 20 (-)	Approx. 0.7 V
Main	Depressed (full opened)	34 (+) and 20 (-)	Approx. 3.9 V
Sub	Not depressed (full closed)	32 (+) and 20 (-)	Approx. 4.4 V
Sub	Depressed (full opened)	32 (+) and 20 (-)	Approx. 1.1 V

NOTE: For installation procedures of ECM connectors, refer to Engine Control Module (ECM). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE CONTROL MODULE (ECM)>INSTALLATION .
