2020 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Steering Angle Sensor: Removal
CAUTION:
- If the steering wheel and the sensor assembly VDC steering are removed, perform "VSC (VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
- Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Always use the steering wheel puller for removal to avoid deforming the steering wheel.
- If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.
- Position the front wheels straight ahead.
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
- Remove the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING WHEEL>REMOVAL .
- Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING COLUMN>REMOVAL .

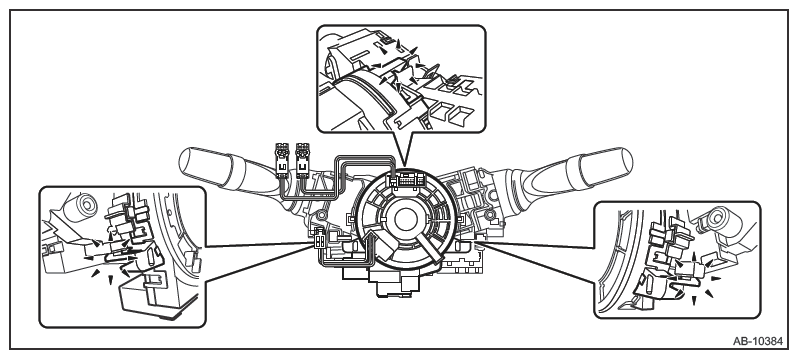

- Remove the steering roll connector.CAUTION: Make sure that the steering roll connector is not turned from the original position.

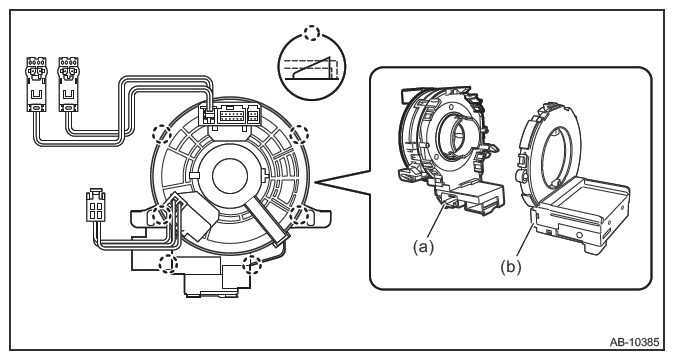

- Remove the sensor assembly VDC steering.
