2019 Subaru WRX STI S209FACTORY OEM SERVICE PROCEDURE
Drive Cycle S
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0246 | TURBOCHARGER/SUPERCHARGER WASTEGATE SOLENOID "A" HIGH | - | 1 |
| P04AD | EVAP SYSTEM (CPC) PURGE CONTROL VALVE "B" CIRCUIT HIGH | - | 2 |
| P0851 | PARK/NEUTRAL SWITCH INPUT CIRCUIT LOW | - | 2 |
| P0852 | PARK/NEUTRAL SWITCH INPUT CIRCUIT HIGH | - | 2 |
WARNING:
When performing the drive cycle S on the public road, be very careful of the traffic condition and the safe driving must be the high priority.
- Using the Subaru Select Monitor, perform the clear memory for «Engine». Refer to ENGINE (DIAGNOSTICS) (STI)>CLEAR MEMORY MODE>OPERATION .

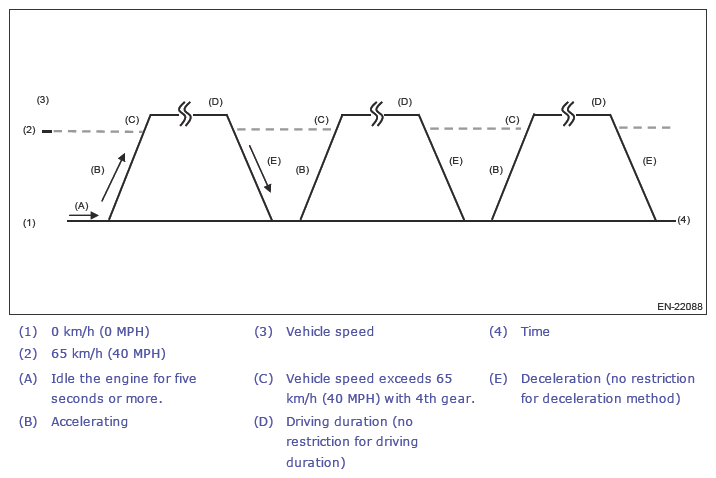

- Drive three times according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to ENGINE (DIAGNOSTIC) (STI)>READ DIAGNOSTIC TROUBLE CODE (DTC)>OPERATION .
