2019 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Shift the select lever to "N" range.
- Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). Refer to EXHAUST (EXCEPT FOR STI)>CENTER EXHAUST PIPE>REMOVAL .
- Remove the center exhaust cover.

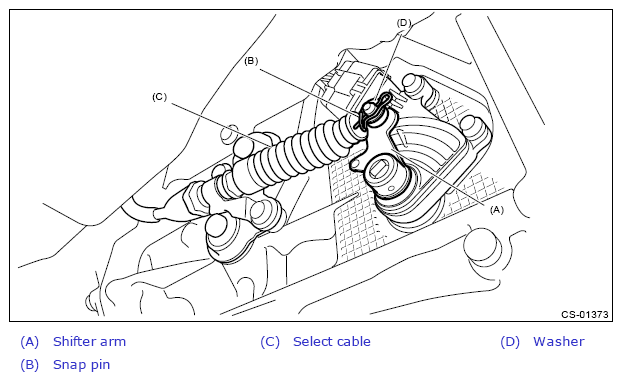

- Remove the snap pin and washer from the shifter arm.CAUTION: Do not apply extra overload while holding the part (a).

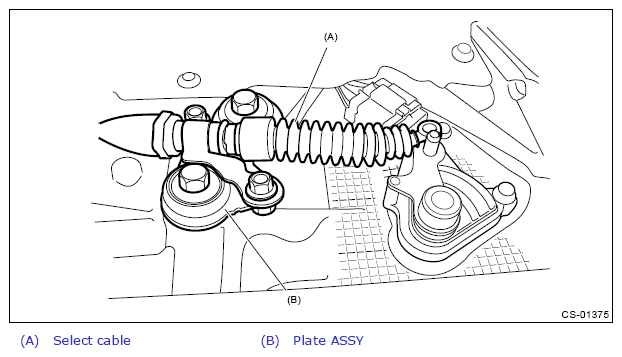

- Remove the plate assembly.

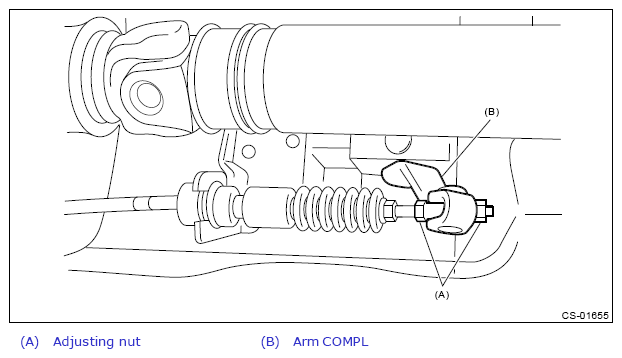

- Disconnect the cable from arm COMPL.CAUTION: Do not apply extra overload while holding the part (a).

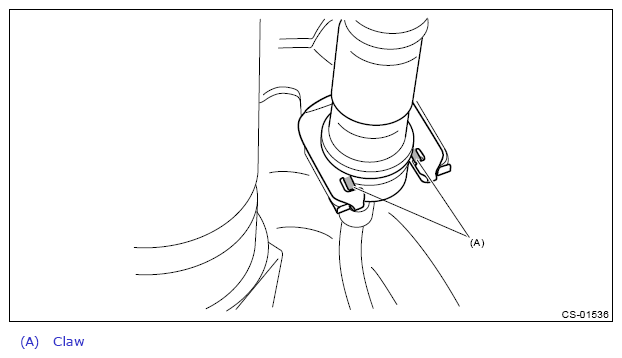

- Raise the claw of clamp and remove the cable.
- Remove the select cable from plate assembly.
