2019 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Drive Cycle T
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P000A | "A" CAMSHAFT POSITION SLOW RESPONSE BANK 1 | «Coolant Temp.»: 70°C (158°F) or more | 2 |
| P000B | "B" CAMSHAFT POSITION SLOW RESPONSE BANK 1 | 2 | |
| P000C | "A" CAMSHAFT POSITION SLOW RESPONSE BANK 2 | 2 | |
| P000D | "B" CAMSHAFT POSITION SLOW RESPONSE BANK 2 | 2 | |
| P0011 | "A" CAMSHAFT POSITION - TIMING OVERADVANCED OR SYSTEM PERFORMANCE BANK 1 | 2 | |
| P0014 | "B" CAMSHAFT POSITION - TIMING OVERADVANCED OR SYSTEM PERFORMANCE BANK 1 | 2 | |
| P0021 | "A" CAMSHAFT POSITION - TIMING OVERADVANCED OR SYSTEM PERFORMANCE BANK 2 | 2 | |
| P0024 | "B" CAMSHAFT POSITION - TIMING OVERADVANCED OR SYSTEM PERFORMANCE BANK 2 | 2 |
WARNING:
When performing the drive cycle T on the public road, be very careful of the traffic condition and the safe driving must be the high priority.
- Using the Subaru Select Monitor, perform the clear memory for «Engine». Refer to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>CLEAR MEMORY MODE>OPERATION .

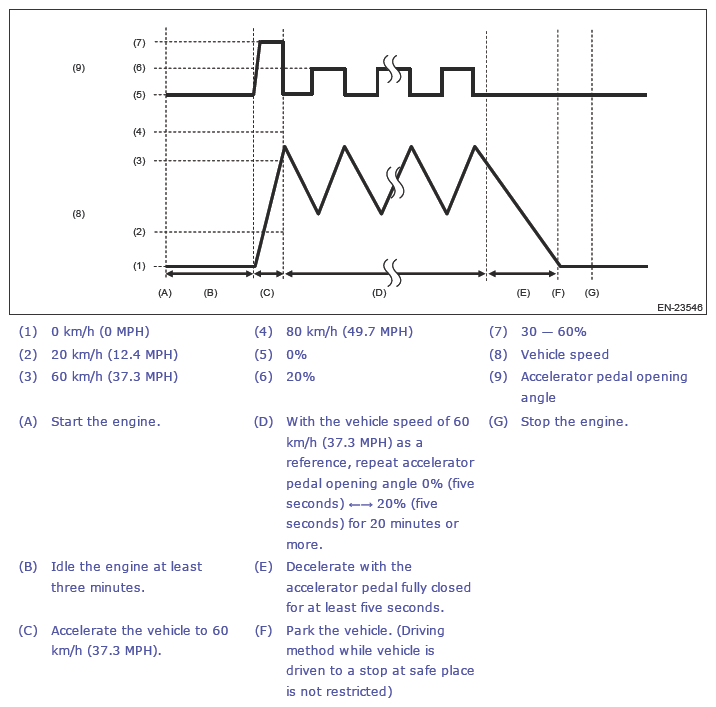

- Drive according to the drive pattern described below.NOTE: In pattern (D), it is acceptable to stop the vehicle according to the traffic condition. Drive the vehicle until the total time of accelerator opening angle 0% (five seconds) ←→ 20% (five seconds) becomes 20 minutes or more.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>READ DIAGNOSTIC TROUBLE CODE (DTC)>OPERATION .
