2019 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

  1. Disconnect the ground terminal from battery sensor. Refer to to NOTE>NOTE>BATTERY .
  2. Remove the ECM. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>ENGINE CONTROL MODULE (ECM)>REMOVAL .
  3. Install the ST between the ECM and bulkhead harness and the engine wiring harness. Refer to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>GENERAL DESCRIPTION>CAUTION .

    ST 18460AA030 CHECK BOARD

  4. Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
  5. Turn the ignition switch to ON. (Engine OFF)
  6. Measure the voltage between ECM connector terminals using ST.

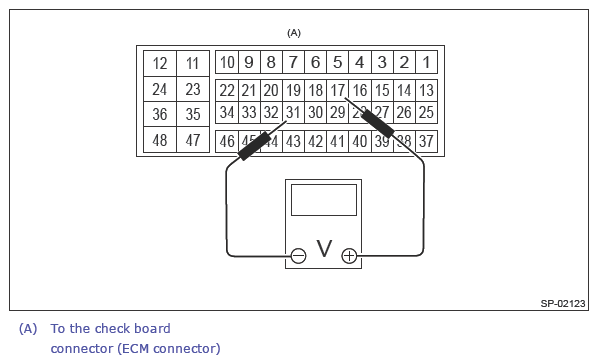

    • Main sensor side
      G13259649Courtesy of SUBARU OF AMERICA, INC.

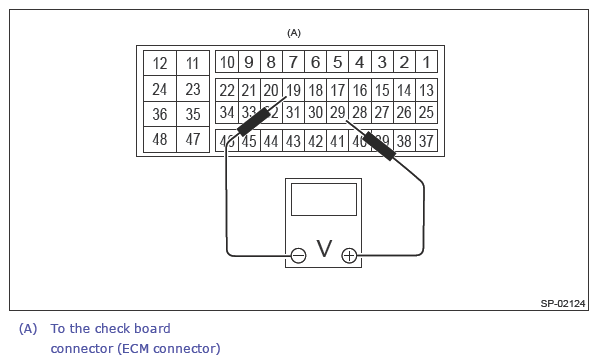

    • Sub sensor side
      G13259650Courtesy of SUBARU OF AMERICA, INC.
    Accelerator pedal sensor Accelerator pedal Terminal No. Standard
    Main Not depressed (full closed) 17 (+) and 31 (-) 0.4 - 1.0 V
    Depressed (full opened) 2.4 - 3.7 V
    Sub Not depressed (full closed) 29 (+) and 19 (-) 0.4 - 1.0 V
    Depressed (full opened) 2.4 - 3.7 V
  7. After inspection, install the related parts in the reverse order of removal.
