2019 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Steering Lock Control Module

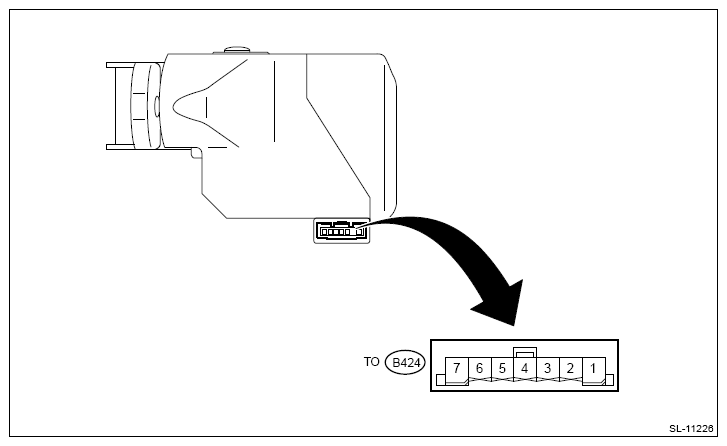

| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (B424) No. 1 ββ Chassis ground | Ground | Always *1 | Less than 1 Ξ© |
| (B424) No. 2 | - | - | - |
| (B424) No. 3 ββ Chassis ground | Steering lock motor drive power supply | Motor not operating β Motor operating | 9.5 V or more β 1 V or less |
| (B424) No. 4 ββ Chassis ground | Unlock position output | Lock β Unlock | 9.5 V or more β 1 V or less |
| (B424) No. 5 | LIN communication | ACC ON, IGN ON or power OFF, and open/close the door | Pulse generation |
| (B424) No. 6 ββ Chassis ground | Ignition power supply | Ignition switch ON *1 | 9.5 V or more |
| (B424) No. 7 ββ Chassis ground | Battery power supply | Always *1 | 9.5 V or more |
NOTE:
*1: Perform while the steering lock control module connector is disconnected.
