Fuel Injector: Installation

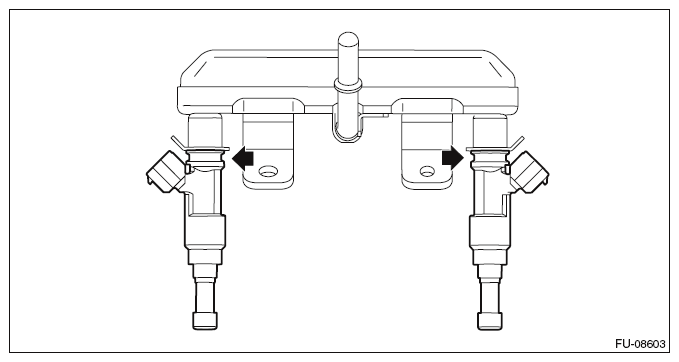

- Install the fuel injector to the fuel pipe.NOTE: Use new O-rings and rubbers.
- Install the fuel injector and fuel pipe as a unit, and install the bolt securing the fuel pipe to the cam carrier.NOTE: Use new seal rings.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Connect the fuel delivery pipe (B) to the fuel pipe LH.CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check again that the quick connector is securely connected.
