2019 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE
Engine Wiring Harness: Installation

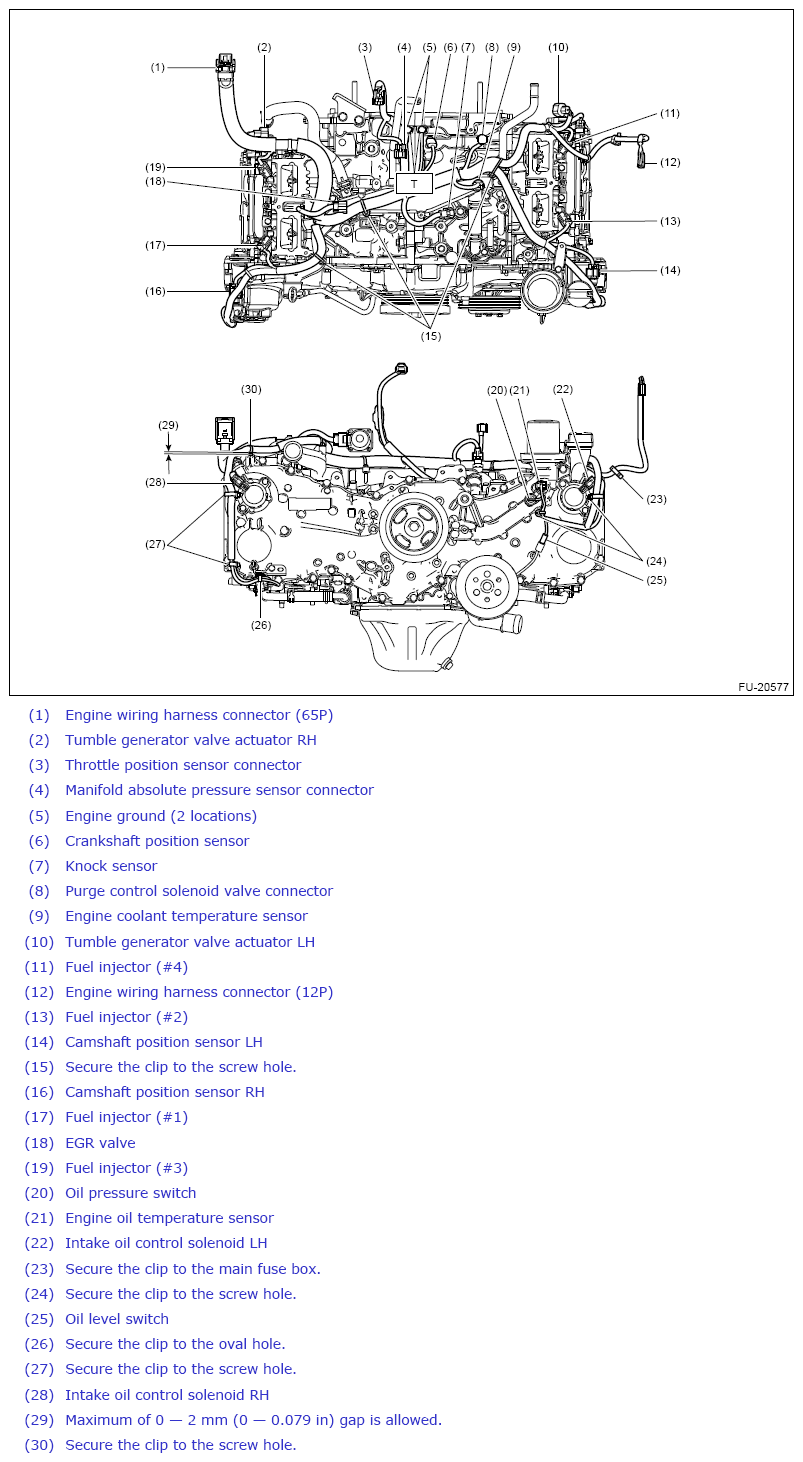

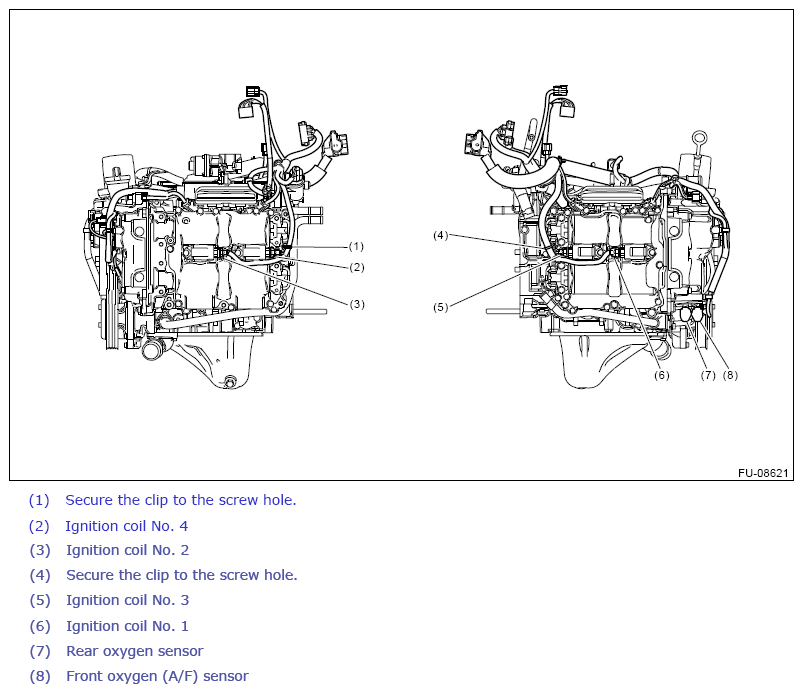

- Set the engine wiring harness to the engine, and connect the connector.NOTE:
- If the clip is damaged, replace it with a new part.

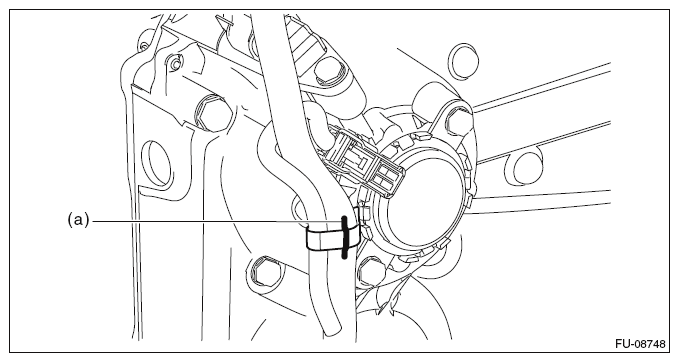

- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.
- Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
