Drive Plate: Installation

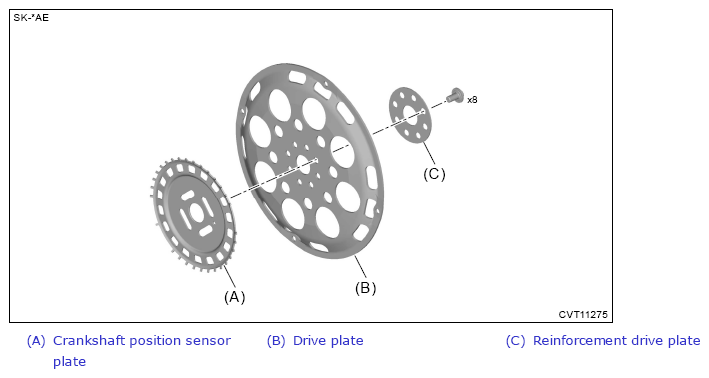

- Temporarily attach the reinforcement drive plate, drive plate and crankshaft position sensor plate, and set the ST.NOTE:
- Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.
- Make sure to install in the right direction.
Preparation tool:
ST: CRANKSHAFT STOPPER (498497300)
- Tighten the bolts securing the drive plate.
- Tighten the bolts securing the drive plate.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
- Using the angle gauge, tighten the bolts securing the drive plate to the specified angle.
Tightening angle:
30°- 35°
- Tighten the bolts securing the drive plate.
- Install the Transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>INSTALLATION .
