2019 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

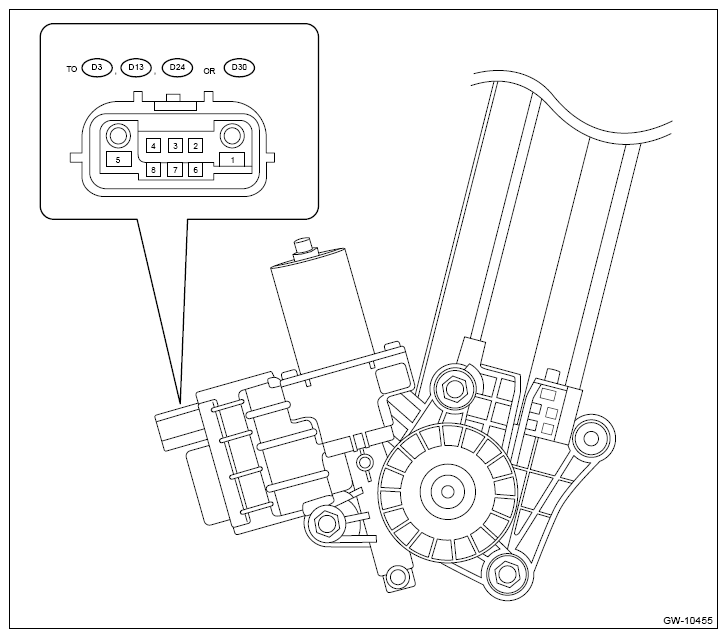

Front Regulator & Motor Assembly (With Off-Delay Function Or With Telematics)
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (D3), (D13), (D24) or (D30) No. 1 ββ Chassis ground | GND | Always | Less than 1 Ξ© |
| (D3), (D13), (D24) or (D30) No. 2 | - | - | - |
| (D3), (D13), (D24) or (D30) No. 3 ββ Chassis ground | SW assembly PW SUB LED output (Except for driver's seat) | - | - |
| (D3), (D13), (D24) or (D30) No. 4 | SW ASSY PW AUTO operation input (Front seat only) | - | - |
| (D3), (D13), (D24) or (D30) No. 5 ββ Chassis ground | Power supply for regulator | Always | Battery voltage |
| (D3), (D13), (D24) or (D30) No. 6 ββ Chassis ground | SW assembly PW DOWN operation input | - | - |
| (D3), (D13), (D24) or (D30) No. 7 | UP AND DOWN LIN signal input | - | - |
| (D3), (D13), (D24) or (D30) No. 8 ββ Chassis ground | SW assembly PW UP operation input | - | - |
