2019 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Power Rear Gate Control Module: Removal
CAUTION:
When the power rear gate CM is replaced, the memory height function is initialized. Be sure to measure the power rear gate height before starting the operation and set the memory height function again after the operation.
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
- Remove the trim panel assembly apron LH and the trim panel rear pillar UPR LH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
- Remove the power rear gate Control Module.

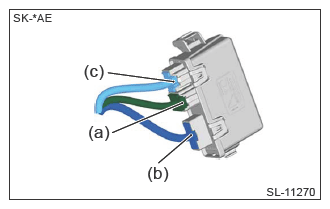

- Disconnect the connectors in the following (a) - (c) order.NOTE: When the connectors are not disconnected in the sequence, a diagnosis code (DTC) may be detected.

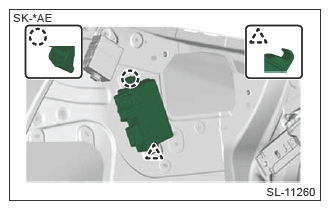

- Release the lock and hook, and remove the power rear gate Control Module.
