2019 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Shift the select lever to "N" range.
- Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
- Lift up the vehicle.
- Remove the center exhaust cover.
- Remove the inhibitor cover. (Crosstrek hybrid model)
- Disconnect the select cable from the transmission main body.CAUTION: Do not apply excessive load while holding the part (a).

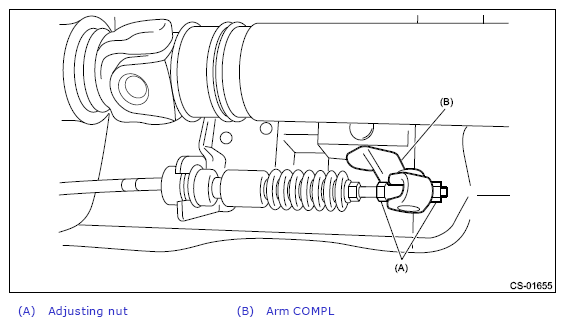

- Disconnect the cable from arm COMPL.CAUTION: Do not apply excessive load while holding the part (a).

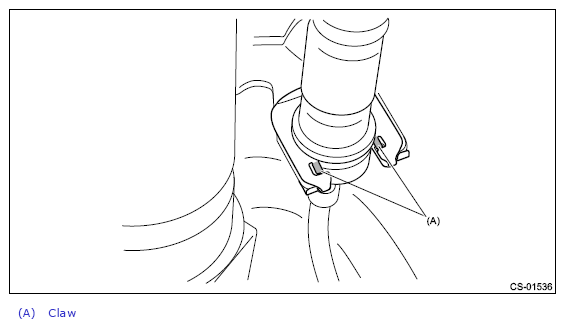

- Raise the claw of clamp to remove the cable from bracket.
- Remove the select cable from plate assembly.
