2019 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Inspection Mode V
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0420 | CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD BANK 1 | - | 2 |
WARNING:
When performing inspection mode V on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:

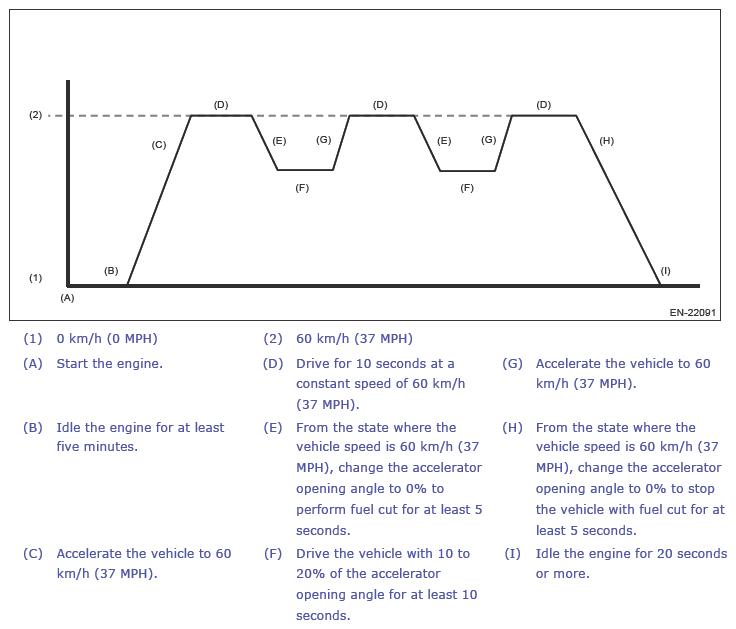

- Drive according to the drive pattern described below.NOTE:
- The condition of acceleration or constant driving can be changed according to different traffic conditions.
- If diagnostic values have not been input after driving, repeat the cycle from step (C) without stopping the engine.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
