2019 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Inspection Mode AA
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P1449 | EVAP SYSTEM CLOG DETECTED (AIR FILTER) | - | 2 |
WARNING:
When performing inspection mode AA on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:
- Using the Subaru Select Monitor, clear the memory of [Engine Control System]. Refer to COMMON (DIAG)>CLEAR MEMORY .

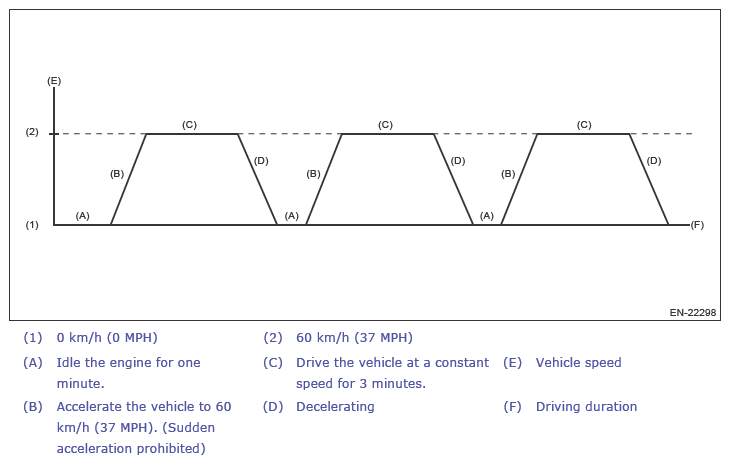

- Drive 3 times according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
