2019 Subaru Crosstrek Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

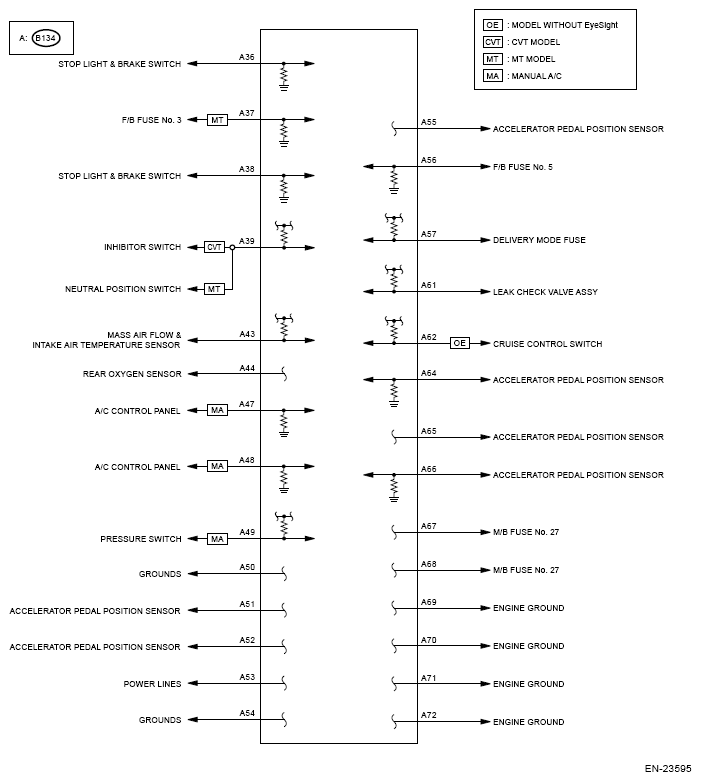

Electrical Specification
| Description | Connect or No. | Terminal No. | Signal (V) | Note | ||
|---|---|---|---|---|---|---|
| Ignition SW ON After warm-up (at engine OFF) | Engine ON After warm-up (at idle) | |||||
| Crankshaft position sensor | Signal | E158 | 66 | 5 | 0 or 5 | Waveforms 1 and 8 |
| Power supply | E158 | 40 | 5 | 5 | - | |
| Ground | E158 | 53 | 0 | 0 | - | |
| Intake camshaft position sensor | RH | E158 | 78 | 0 or 5 | 0 or 5 | Waveform 1 |
| LH | E158 | 77 | 0 or 5 | 0 or 5 | Waveform 1 | |
| Exhaust camshaft position sensor | RH | E158 | 65 | 0 or 5 | 0 or 5 | Waveform 1 |
| LH | E158 | 64 | 0 or 5 | 0 or 5 | Waveform 1 | |
| Camshaft position sensor ground | E158 | 51 | 0 | 0 | - | |
| Front oxygen | (+) signal | E158 | 60 | 2.8 - 3.2 | 2.8 - 3.2 | Waveform 2 |
| (-) signal | E158 | 73 | 1.3 - 3.1 | 2.4 - 2.7 | Waveform 2 | |
| Rear oxygen sensor | Heater signal | E158 | 88 | Battery voltage | 0 or battery voltage | Waveform 4 |
| Shield | E158 | 47 | 0 | 0 | - | |
| (+) signal | B134 | 33 | 2.7 - 3 | Waveform | Waveform 3 | |
| (-) signal | B134 | 44 | 1.9 - 2 | Waveform | Waveform 3 | |
| Heater signal | B134 | 22 | Battery voltage | 0 or battery voltage | Waveform 4 | |
| Air flow sensor signal | B134 | 32 | 0 or 5 | 0 or 5 | - | |
| Intake air temperature sensor signal | B134 | 43 | 0.3 - 4.6 | 0.3 - 4.6 | - | |
| Engine coolant temperature sensor signal | E158 | 45 | 1 - 1.4 | 1 - 1.4 | - | |
| Engine oil temperature sensor signal | E158 | 46 | 1 - 1.4 | 1 - 1.4 | - | |
| Manifold absolute pressure sensor signal | E158 | 69 | 3.5 - 4.8 | 1.4 - 2.1 | - | |
| Knock sensor 1 | Signal | E158 | 4 | 2.4 - 2.6 | 2.1 - 2.8 | - |
| Ground | E158 | 17 | 0 | 0 | - | |
| Knock sensor 2 | Signal | E158 | 5 | 2.4 - 2.6 | 2.4 | - |
| Ground | E158 | 18 | 0 | 0 | - | |
| Knock sensor shield | E158 | 16 | 0 | 0 | - | |
| Accelerator pedal position sensor | Main signal | B134 | 66 | Fully closed: 0.3 - 1.1 Fully open: 2.3 - 3.8 |
Fully closed: 0.3 - 1.4 Fully open: 2.4 - 3.8 |
Waveforms 2, 3, 5 and 6 |
| Main power supply | B134 | 51 | 5 | 5 | - | |
| Main ground | B134 | 55 | 0 | 0 | - | |
| Sub signal | B134 | 64 | Fully closed: 0.3 - 1.1 Fully open: 2.3 - 3.8 |
Fully closed: 0.3 - 1.4 Fully open: 2.3 - 3.8 |
- | |
| Sub power supply | B134 | 52 | 5 | 5 | - | |
| Sub ground | B134 | 65 | 0 | 0 | - | |
| Tumble generator valve RH | Position signal | E158 | 28 | Waveform | Waveform | Waveform 5 |
| Motor open | E158 | 102 | Waveform | Waveform | Waveform 5 | |
| Motor closed | E158 | 111 | Waveform | Waveform | Waveform 5 | |
| Tumble generator valve LH | Position signal | E158 | 42 | Waveform | Waveform | Waveform 6 |
| Motor open | E158 | 101 | Waveform | Waveform | Waveform 6 | |
| Motor closed | E158 | 110 | Waveform | Waveform | Waveform 6 | |
| Intake oil control solenoid | RH | E158 | 99 | Battery voltage | 0 or battery voltage | Waveform 7 |
| LH | E158 | 100 | Battery voltage | 0 or battery voltage | Waveform 7 | |
| Exhaust oil control solenoid | RH | E158 | 108 | Battery voltage | 0 or battery voltage | Waveform 7 |
| LH | E158 | 109 | Battery voltage | 0 or battery voltage | Waveform 7 | |
| Purge control solenoid valve | E158 | 9 | Battery voltage | Battery voltage | Operating: 0 | |
| Leak check valve assembly | Switching valve | B134 | 11 | Battery voltage | Battery voltage | Operating: 0 |
| Pressure sensor | B134 | 61 | 1 - 4 | 1 - 4 | When ignition switch is turned to ON: atmospheric pressure | |
| Vacuum pump | B134 | 10 | Battery voltage | Battery voltage | Operating: 0 | |
| Ignition coil | #1 | E158 | 10 | 0 | 0 or 5 | Waveform 8 |
| #2 | E158 | 11 | 0 | 0 or 5 | Waveform 8 | |
| #3 | E158 | 12 | 0 | 0 or 5 | Waveform 8 | |
| #4 | E158 | 13 | 0 | 0 or 5 | Waveform 8 | |
| Fuel pressure sensor | Signal 1 | E158 | 56 | 1 - 1.6 | 1 | - |
| Signal 2 | E158 | 50 | 3 - 3.6 | 3 - 3.6 | - | |
| High-pressure fuel pump | (+) signal | E158 | 105 | - | - | - |
| (-) signal | E158 | 114 | - | - | - | |
| Fuel injector | #1 (+) | E158 | 87 | 2 - 3 | - | Measurement is prohibited while the engine is running. |
| #1 (-) | E158 | 96 | 2 - 3 | - | ||
| #2 (+) | E158 | 86 | 2 - 3 | - | ||
| #2 (-) | E158 | 95 | 2 - 3 | - | ||
| #3 (+) | E158 | 84 | 2 - 3 | - | ||
| #3 (-) | E158 | 93 | 2 - 3 | - | ||
| #4 (+) | E158 | 85 | 2 - 3 | - | ||
| #4 (-) | E158 | 94 | 2 - 3 | - | ||
| EGR control valve | Signal 1 | E158 | 98 | 0 or battery voltage | 0 or battery voltage | - |
| Signal 2 | E158 | 97 | 0 or battery voltage | 0 or battery voltage | - | |
| Signal 3 | E158 | 107 | 0 or battery voltage | 0 or battery voltage | - | |
| Signal 4 | E158 | 106 | 0 or battery voltage | 0 or battery voltage | - | |
| Electronic throttle control sensor | Main signal | E158 | 29 | Approx. 0.7 | Approx. 0.6 - 1.2 | Fully closed: Approx. 0.6 - 1.2 Fully open: Approx. 3.8 - 4.4 |
| Sub signal | E158 | 43 | Approx. 1.6 | Approx. 1.5 - 1.7 | Fully closed: Approx. 1.4 - 2.0 Fully open: Approx. 4.0 - 4.6 |
|
| Shield | E158 | 44 | 0 | 0 | - | |
| Motor (+) | E158 | 83 | 0 or battery voltage | 0 or battery voltage | Drive frequency: 500 Hz | |
| Motor (-) | E158 | 92 | 0 or battery voltage | 0 or battery voltage | Drive frequency: 500 Hz | |
| Power supply | E158 | 27 | 5 | 5 | - | |
| Ground | E158 | 30 | 0 | 0 | - | |
| A/C relay control | B134 | 18 | ON: 0.5 V or less OFF: Battery voltage |
ON: 0.5 V or less OFF: Battery voltage |
Manual A/C model | |
| A/C switch | B134 | 47 | ON: Battery voltage OFF: 0 |
ON: Battery voltage OFF: 0 |
Manual A/C model | |
| Blower fan switch | B134 | 48 | ON: 0 OFF: Battery voltage |
ON: 0 OFF: Battery voltage |
Manual A/C model | |
| A/C middle pressure switch | B134 | 49 | ON: 0 OFF: Battery voltage |
ON: 0 OFF: Battery voltage |
Manual A/C model | |
| Self-shutoff relay control | B134 | 12 | 0 | 0 | - | |
| Starter relay control | B134 | 2 | Waveform | Waveform | Model without push button start Waveform 9 Model with push button start Waveform 11 | |
| Starter cut relay control | B134 | 24 | Waveform | Waveform | Model without push button start Waveform 9 Model with push button start Waveforms 10 and 11 | |
| Fuel pump relay control | B134 | 31 | 0 or battery voltage | 0 | ON: 0 OFF: Battery voltage |
|
| Main fan relay control | B134 | 30 | Battery voltage | Battery voltage | ON: 0 | |
| Sub fan relay control | B134 | 19 | Battery voltage | Battery voltage | ON: 0 | |
| Ignition switch | B134 | 56 | Battery voltage | Battery voltage | Waveform 11 | |
| Neutral position switch | B134 | 39 | ON: 0 OFF: Battery voltage |
0 | - | |
| Delivery mode switch | B134 | 57 | Battery voltage | Battery voltage | When fuse is installed: 0 | |
| Oil level switch | E158 | 57 | 0 | 0 | Oil level LOW: Battery voltage | |
| Starter switch | B134 | 25 | Waveform | Waveform | Model without push button start Waveform 9 Model with push button start Waveform 10 |
|
| Starter switch 2 | B134 | 27 | Waveform | Waveform | Model without push button start Waveform 9 Model with push button start Waveform 10 |
|
| Accessory cut request | B134 | 34 | Waveform | Waveform | Model with push button start Waveform 10 | |
| Engine speed output | B134 | 17 | Waveform | Waveform | Model with push button start Waveform 11 | |
| Clutch start switch | B134 | 37 | When clutch pedal is depressed: Battery voltage When clutch pedal is released: 0 |
When clutch pedal is depressed: Battery voltage When clutch pedal is released: 0 | MT model (with push button start) | |
| Clutch switch | B134 | 28 | When clutch pedal is depressed: 0 When clutch pedal is released: Battery voltage |
When clutch pedal is depressed: 0 When clutch pedal is released: Battery voltage |
MT model | |
| Brake switch 1 (Brake switch) | B134 | 36 | When brake pedal is depressed: 0 When brake pedal is released: Battery voltage |
When brake pedal is depressed: 0 When brake pedal is released: Battery voltage |
- | |
| Brake switch 2 (Stop light switch) | B134 | 38 | When brake pedal is depressed: Battery voltage When brake pedal is released: 0 |
When brake pedal is depressed: Battery voltage When brake pedal is released: 0 |
- | |
| Cruise control main switch | B134 | 35 | ON: 0 OFF: 5 |
ON: 0 OFF: 5 |
Model without EyeSight | |
| Cruise control command switch | B134 | 62 | When operating nothing: 3.5 - 4.5 When operating RES/ACC: 2.5 - 3.5 When operating SET/COAST: 0.5 - 1.5 When operating CANCEL: 0 - 0.5 |
When operating nothing: 3.5 - 4.5 When operating RES/ACC: 2.5 - 3.5 When operating SET/COAST: 0.5 - 1.5 When operating CANCEL: 0 - 0.5 |
Model without EyeSight | |
| LIN communication | B134 | 5 | - | - | - | |
| Immobilizer communication | B134 | 6 | - | - | - | |
| CAN communication | HI | B134 | 3 | - | - | - |
| LO | B134 | 14 | - | - | - | |
| Control module power supply | B134 | 67 | Battery voltage | Battery voltage | - | |
| B134 | 68 | Battery voltage | Battery voltage | - | ||
| Backup power supply | B134 | 1 | Battery voltage | Battery voltage | Ignition switch OFF: Battery voltage | |
| Sensor power supply | B134 | 53 | 5 | 5 | - | |
| E158 | 41 | 5 | 5 | - | ||
| Ground | Body | B134 | 50 | 0 | 0 | - |
| Sensor | B134 | 54 | 0 | 0 | - | |
| E158 | 54 | 0 | 0 | - | ||
| Engine 1 | B134 | 71 | 0 | 0 | - | |
| Engine 2 | B134 | 72 | 0 | 0 | - | |
| Engine 3 | B134 | 69 | 0 | 0 | - | |
| Engine 4 | B134 | 70 | 0 | 0 | - | |
NOTE:
- After engine is warmed up, attach the check board for measurement.
- Set the select lever in "P" range or "N" range, or the shift lever in neutral.
- Turn the A/C to OFF.
- Turn all the accessory switches to OFF.
- Waveforms vary depending on a measurement environment and vehicle condition.
- Oscilloscope waveform illustrated here is an example for reference. Noise and chattering in waveform are omitted.
- Waveform 1
Measured terminal Crankshaft position sensor signal (E158) No. 66 (+) - Engine ground 3 (B134) No. 69 (-): Intake camshaft position sensor RH (E158) No. 78 (+) - Engine ground 3 (B134) No. 69 (-): Intake camshaft position sensor LH (E158) No. 77 (+) - Engine ground 3 (B134) No. 69 (-): Exhaust camshaft position sensor RH (E158) No. 65 (+) - Engine ground 3 (B134) No. 69 (-): Exhaust camshaft position sensor LH (E158) No. 64 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition While engine idling - Waveform 2
Measured terminal Front oxygen (A/F) sensor (+) signal (E158) No. 60 (+) - Engine ground 3 (B134) No. 69 (-): Front oxygen (A/F) sensor (-) signal (E158) No. 73 (-) - Engine ground 3 (B134) No. 69 (-): Accelerator pedal position sensor main signal (B134) No. 66 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition (a) accelerator pedal fully closed (b) accelerator pedal half open (c) accelerator pedal fully opened - Waveform 3 Crosstrek
Except for Crosstrek
Measured terminal Rear oxygen sensor (+) signal (B134) No. 33 (+) - Rear oxygen sensor (-) signal (B134) No. 44 (-): Accelerator pedal position sensor main signal (B134) No. 66 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened - Waveform 4
Measured terminal Front oxygen (A/F) sensor heater signal (E158) No. 88 (+) - Engine ground 3 (B134) No. 69 (-): Rear oxygen sensor heater signal (B134) No. 22 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition While engine idling - Waveform 5
Measured terminal Tumble generator valve RH position signal (E158) No. 28 (+) - Engine ground 3 (B134) No. 69 (-): Tumble generator valve RH motor open (E158) No. 102 (+) - Engine ground 3 (B134) No. 69 (-): Tumble generator valve RH motor closed (E158) No. 111 (+) - Engine ground 3 (B134) No. 69 (-): Accelerator pedal position sensor main signal (B134) No. 66 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened - Waveform 6
Measured terminal Tumble generator valve LH position signal (E158) No. 42 (+) - Engine ground 3 (B134) No. 69 (-): Tumble generator valve LH motor open (E158) No. 101 (+) - Engine ground 3 (B134) No. 69 (-): Tumble generator valve LH motor closed (E158) No. 110 (+) - Engine ground 3 (B134) No. 69 (-): Accelerator pedal position sensor main signal (B134) No. 66 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened - Waveform 7
Measured terminal Intake oil control solenoid RH (E158) No. 99 (+) - Engine ground 3 (B134) No. 69 (-): Intake oil control solenoid LH (E158) No. 100 (+) - Engine ground 3 (B134) No. 69 (-): Exhaust oil control solenoid RH (E158) No. 108 (+) - Engine ground 3 (B134) No. 69 (-): Exhaust oil control solenoid LH (E158) No. 109 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition While engine idling - Waveform 8
Measured terminal Crankshaft position sensor signal (E158) No. 66 (+) - Engine ground 3 (B134) No. 69 (-): Ignition control #1 (E158) No. 10 (+) - Engine ground 3 (B134) No. 69 (-): Ignition control #2 (E158) No. 11 (+) - Engine ground 3 (B134) No. 69 (-): Ignition control #3 (E158) No. 12 (+) - Engine ground 3 (B134) No. 69 (-): Ignition control #4 (E158) No. 13 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition While engine idling - Waveform 9
Measured terminal Starter switch (B134) No. 25 (+) - Engine ground 3 (B134) No. 69 (-): Starter switch 2 (B134) No. 27 (+) - Engine ground 3 (B134) No. 69 (-): Starter cut relay control (B134) No. 24 (+) - Engine ground 3 (B134) No. 69 (-): Starter relay control (B134) No. 2 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition When engine is started - Waveform 10
Measured terminal Starter switch (B134) No. 25 (+) - Engine ground 3 (B134) No. 69 (-): Starter switch 2 (B134) No. 27 (+) - Engine ground 3 (B134) No. 69 (-): Accessory cut request (B134) No. 34 (+) - Engine ground 3 (B134) No. 69 (-): Starter cut relay control (B134) No. 24 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition When engine is started - Waveform 11
Measured terminal Starter cut relay control (B134) No. 24 (+) - Engine ground 3 (B134) No. 69 (-): Starter relay control (B134) No. 2 (+) - Engine ground 3 (B134) No. 69 (-): Engine speed output (B134) No. 17 (+) - Engine ground 3 (B134) No. 69 (-): Ignition switch (B134) No. 56 (+) - Engine ground 3 (B134) No. 69 (-): Measuring condition When engine is started
