Fuel Tank

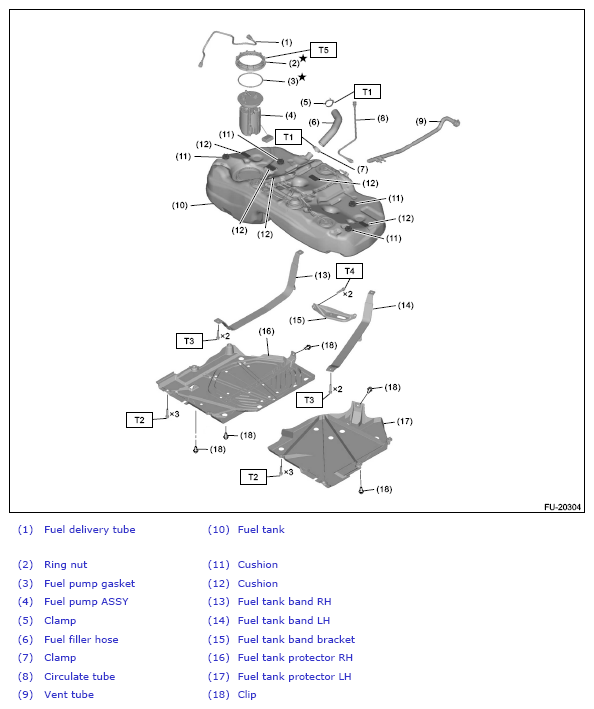

- Impreza model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2.5 (0.3, 1.8)
T2: 18 (1.8, 13.3)
T3: 33 (3.4, 24.3)
T4: 37 (3.8, 27.3)
T5: 130 (13.3, 95.9)

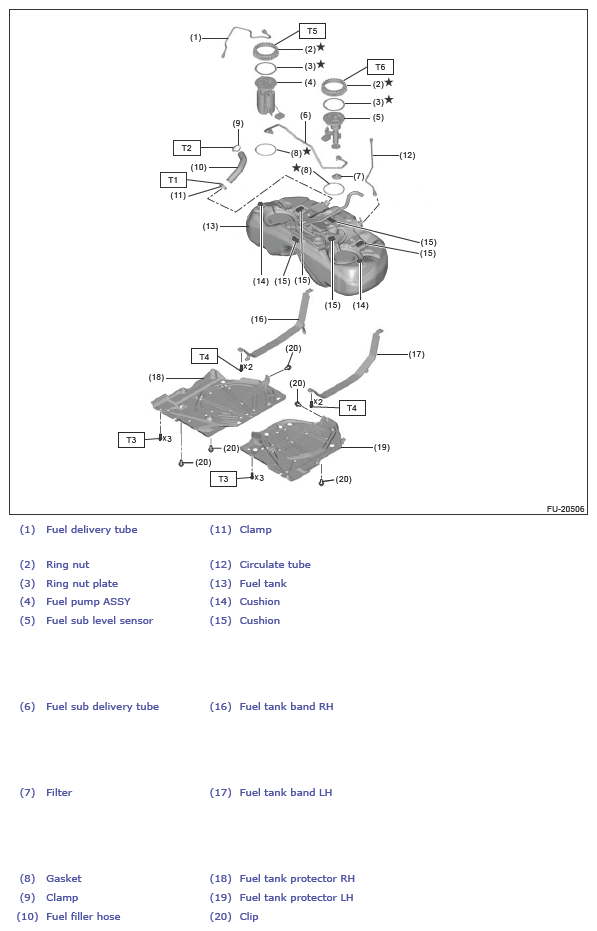

- Crosstrek model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 2.5 (0.3, 1.8)
T3: 18 (1.8, 13.3)
T4: Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL TANK>INSTALLATION .
T5: Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL PUMP>INSTALLATION .
T6: Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>FUEL SUB LEVEL SENSOR>INSTALLATION .
