2019 Subaru BRZ Limited, Automatic TransFACTORY OEM SERVICE PROCEDURE

Injector Driver (FA20): Installation

Injector driver installation

CAUTION:

Do not apply any impact to the injector driver.
When installing the injector driver, check that the installation portion of the injector driver to the engine is not dirty. The injector driver is grounded to the engine. Therefore, improper cleaning or installation may cause malfunction of the injector driver.

Install the injector driver with the three bolts.

Standard value: T=6.4Nm {65kgfcm} {4.7ftlbf}

Courtesy of SUBARU OF AMERICA, INC.

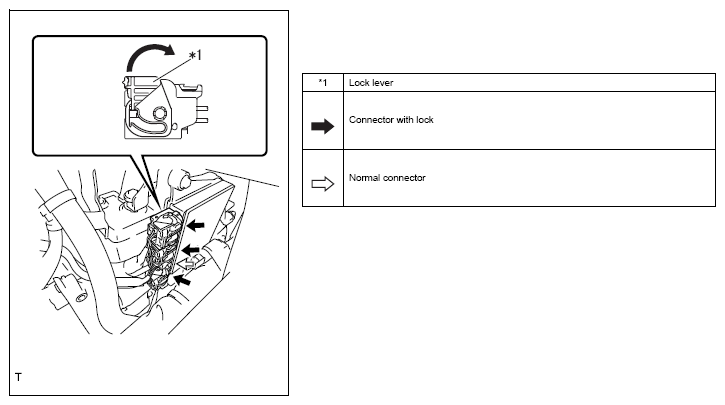

Connect the three connectors with lock and normal connector to the injector driver and move the lock lever as shown in the figure to lock the three connectors with lock.
CAUTION: For connector with lock, connect the connector securely to lock it.

Connection of the battery ground terminal
Standard value: T=6.0Nm {61kgfcm} {4.4ftlbf}
