2019 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Front Wheel Toe-In
When adjusting the toe-in, adjust it to the following value.
Toe-in: Adjustment value.
0±2 mm (0±0.08 in)
- Check that the left and right wheel steering angles are within specification.

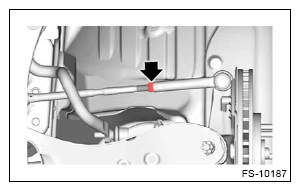

- Loosen the left and right side tie-rod lock nuts.
- Turn the left and right tie-rods by equal amounts until the toe-in is at the specification.NOTE: Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise by equal amount (viewing from the inside of vehicle).
- Tighten the tie-rod lock nut.
Tightening torque:
85 N.m (8.7 kgf-m, 62.7 ft-lb)
- Check and correct the tie-rod boot if twisted.
