2019 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE
Sub Frame: Removal
- Lift up the vehicle, and then remove the front wheels.
- Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

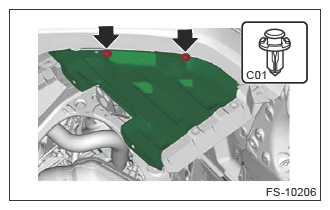

- Turn over the mud guard front.

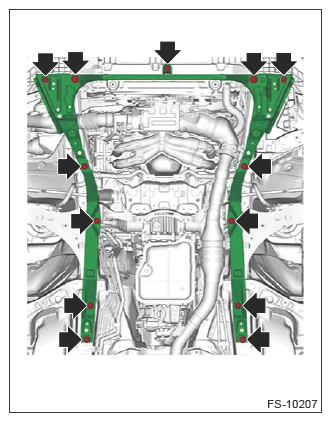

- Remove the sub frame COMPL from the vehicle body.CAUTION: The sub frame COMPL is heavy. Remove it carefully by paying attention to the balance.
