2019 Subaru Ascent BaseFACTORY OEM SERVICE PROCEDURE

Steering Column: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Adjust the tilt position of the steering column to the neutral position and the telescopic position to the longest position.
    CAUTION: Always place the tilt lever to the lock position after the steering column is adjusted.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  4. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  5. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
  6. Remove the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>REMOVAL .
  7. Remove the column cover assembly and the combination switch assembly. Ref. to LIGHTING SYSTEM>COMBINATION SWITCH (LIGHT)>REMOVAL .
  8. Remove all connectors from the column assembly steering.
  9. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  10. Remove the universal joint LWR. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>REMOVAL>UNIVERSAL JOINT LWR .

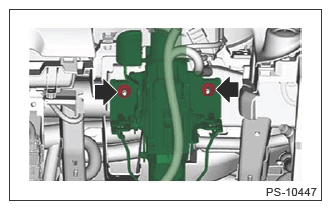

  11. Remove the nut under the beam COMPL steering which secures the column assembly steering.
    G13200406Courtesy of SUBARU OF AMERICA, INC.
  12. Pull out the column assembly steering from the hole on toe board.
    CAUTION:
    • Do not loosen the tilt lever when the column assembly steering is not secured to the vehicle.
    • Be careful not to pull out the universal joint UPR while it is bent, because it may damage the bushing. If the bushing is damaged, be sure to replace it with a new bushing.
  13. Remove the ignition key lock. Ref. to SECURITY AND LOCKS>IGNITION KEY LOCK>REPLACEMENT .

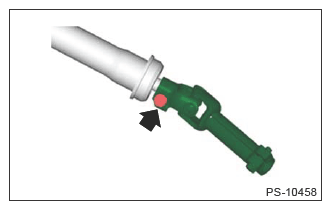

  14. Remove the universal joint UPR from the steering column.
G13200407Courtesy of SUBARU OF AMERICA, INC.
