Unit Inspection
Check the following items, and if there is anything out of standard value, it is considered to be damaged. If so, replace it with a new part.

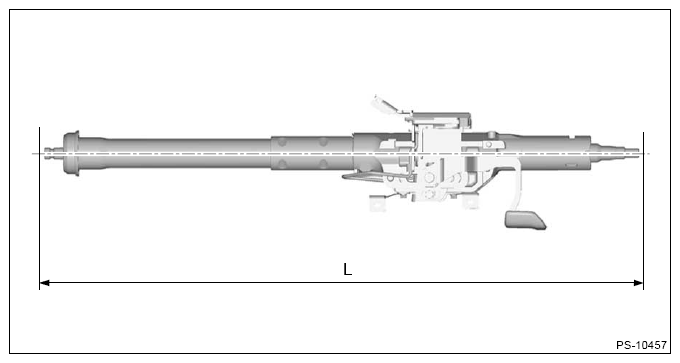

- Measure the whole length of the column assembly steering.
Standard: Overall length L.
Tilt and telescopic column (measure while minimized)
750.8+1.5-1.5 mm (29.56+0.059-0.059 in)

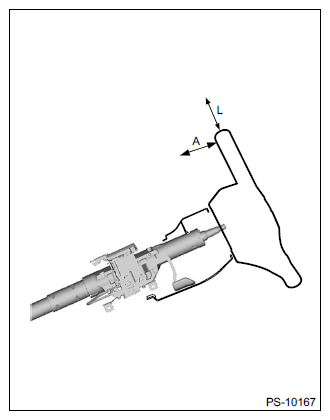

- Check the steering wheel deflection in axial and vertical directions.
Specification:
Axial deflection A (deflection of steering wheel)
Less than 6 mm (0.24 in)
Vertical deflection L (runout of steering wheel)
Less than 17 mm (0.68 in)
