Crankshaft Position Sensor
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Prepare an oscilloscope.
- Disconnect the connector from ECM in numerical order as shown in the figure.
- Attach the ST between the ECM, engine wiring harness and the bulkhead wiring harness. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD
.
Special Tool:
CHECK BOARD (18460AA150)
- Connect the probe to ST.

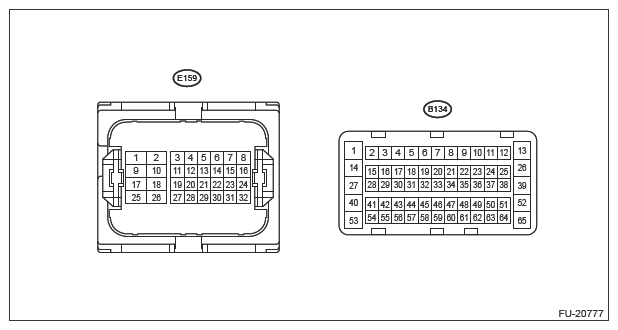

Terminal No. Probe (E159) No. 14 + (B134) No. 40 - - Start the engine and let it idle.
- Check the waveforms and voltage.NOTE: For waveform and voltage, refer to "Control Module (ECM) I/O Signal". Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>CONTROL MODULE I/O SIGNAL>ELECTRICAL SPECIFICATION .
- After inspection, install the related parts in the reverse order of removal.NOTE: For installation procedures of ECM connectors, refer to Engine Control Module (ECM). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE CONTROL MODULE (ECM)>INSTALLATION .
