Multi Function Display

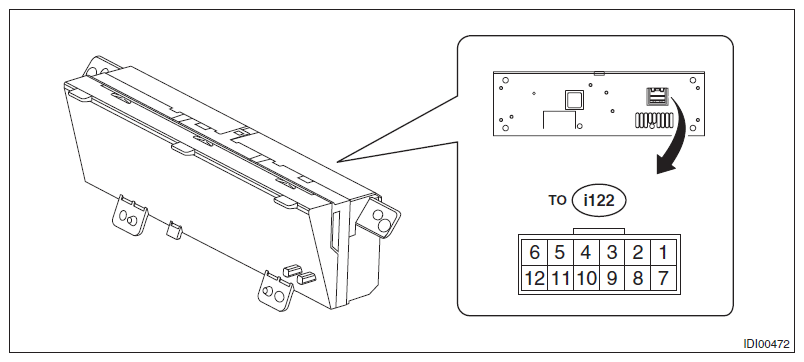

- Normal type i122
Terminal No. Item Measuring condition Standard 1 (+B) β Chassis ground Voltage Always 10 - 14 V 2 (IG) β Chassis ground Voltage IG OFF β ON 0 V β 10 - 14 V 3 (GND) β Chassis ground Resistance Always Less than 1 Ξ© 4 (MFD SW+) β Chassis ground Voltage SW OFF β ON 10 - 14 V β 0 V 8 (U-ART com.) - Cannot be measured - - High grade type
For the specification (electrical component), refer to the "Control Module I/O Signal" of the "MULTIFUNCTION DISPLAY (DIAGNOSTICS)" information. Ref. to MULTI-FUNCTION DISPLAY (DIAGNOSTICS)>CONTROL MODULE I/O SIGNAL>ELECTRICAL SPECIFICATION .
