2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

At Select Lever Assembly

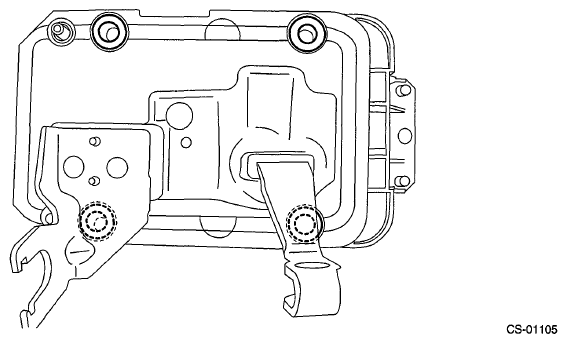

  1. Remove the spacer plate.
    G06651725

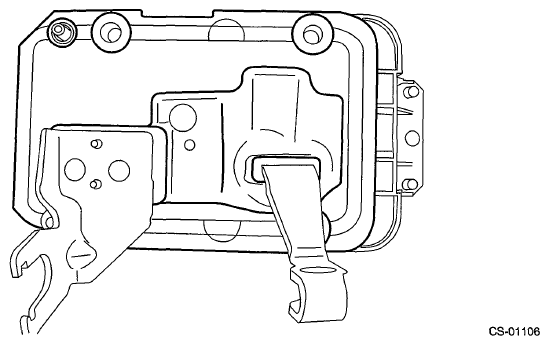

  2. Remove the gasket.
    G06651726

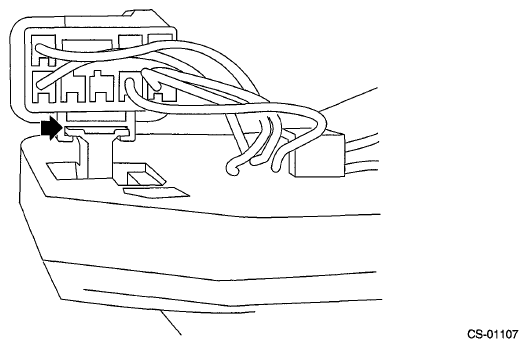

  3. Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector.
    G06651727

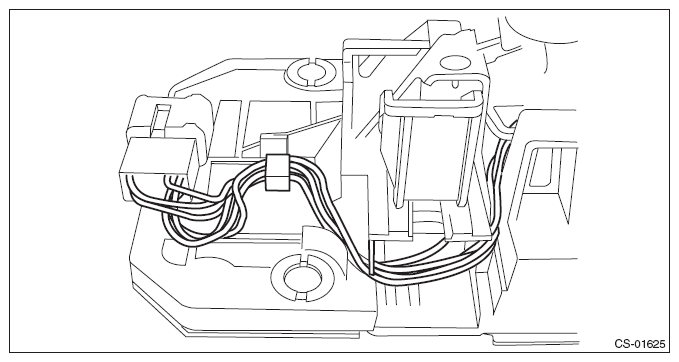

  4. Remove the harness.
    G08550592

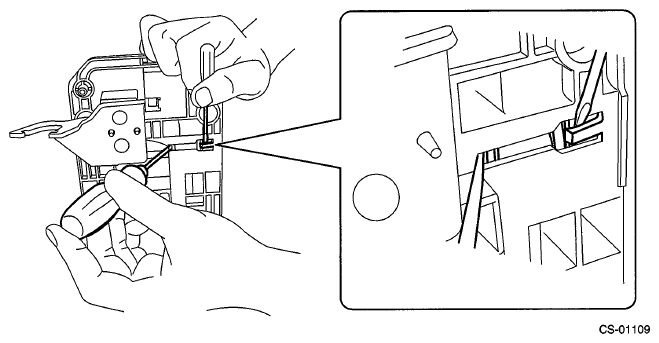

  5. Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.
    G06651729

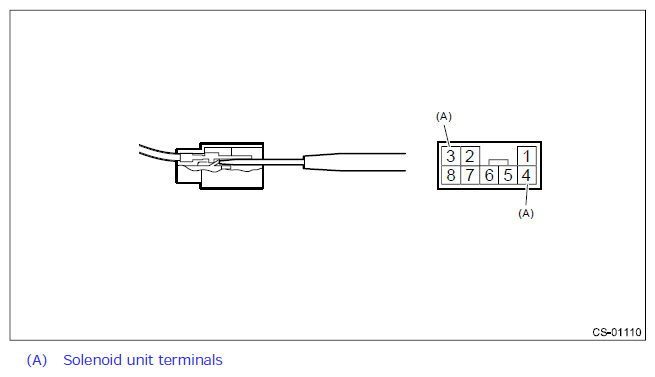

  6. Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.
    G12448302

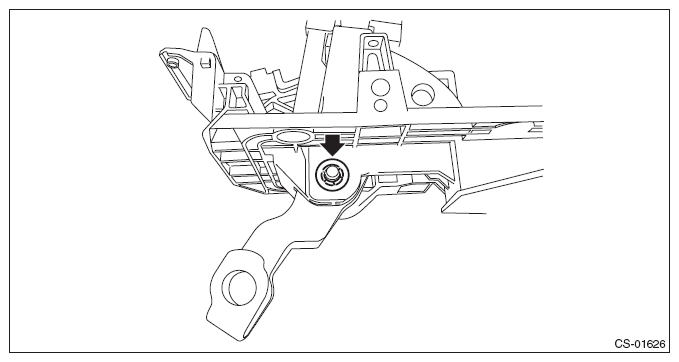

  7. Remove the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G08550595

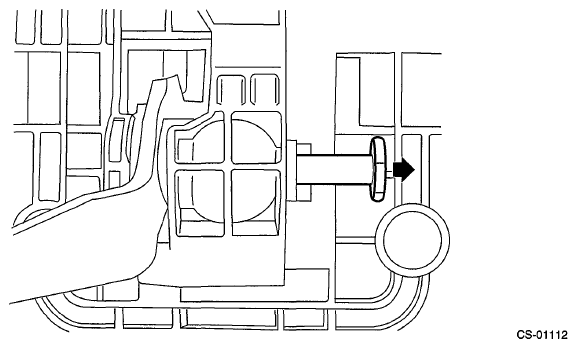

  8. Pull out shaft control.
    G06651732

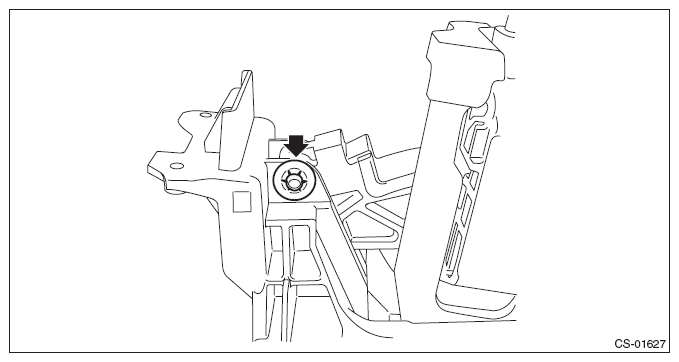

  9. Remove the clamp push nut.
    NOTE: Replace the clamp push nut with a new part.
    G08550597

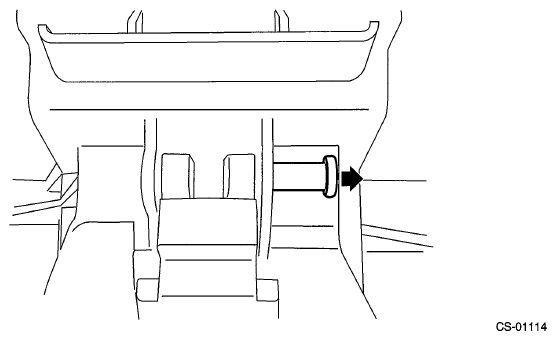

  10. Pull out spacer pin guide.
    G06651734

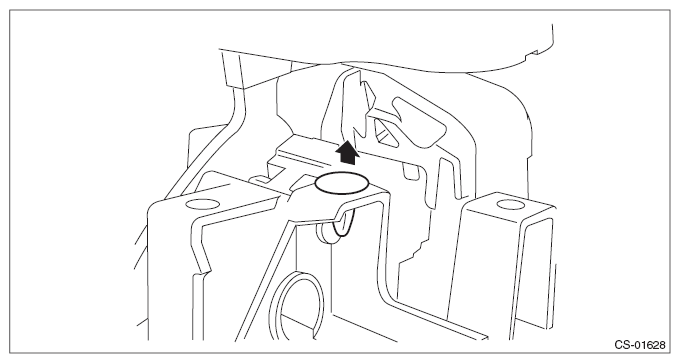

  11. Remove the clamp pin.
    G08550599

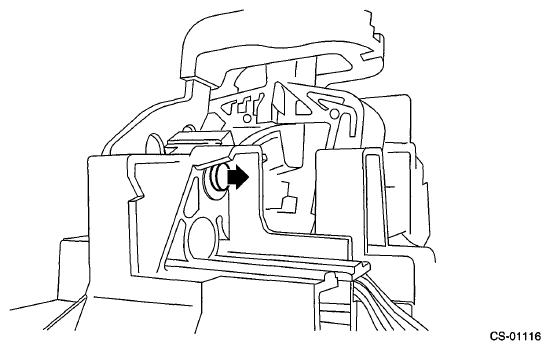

  12. Remove the spacer pin guide.
    G06651736

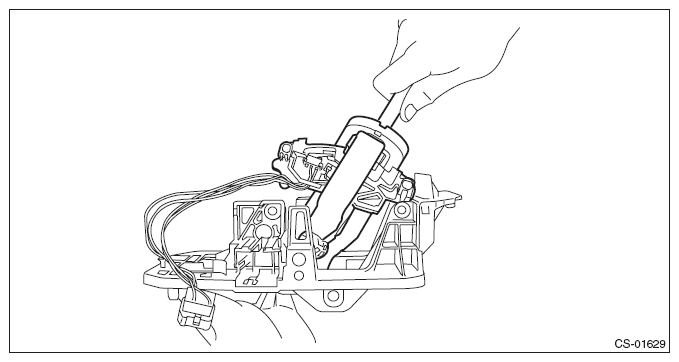

  13. Remove the select lever COMPL.
    G08550601

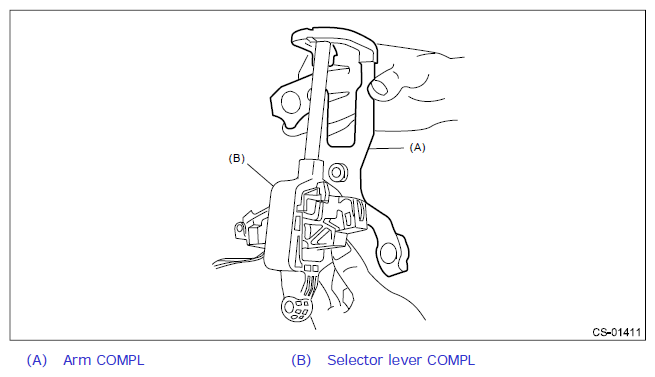

  14. Remove the arm COMPL.
    G12448310

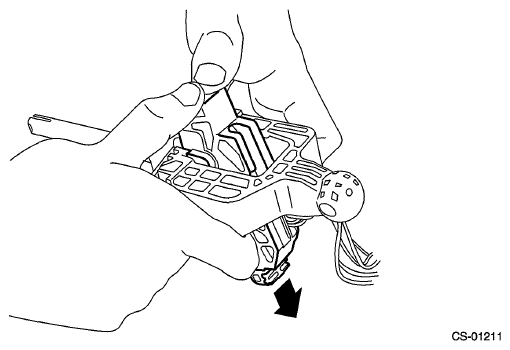

  15. Remove the plate guide.
    G06651739

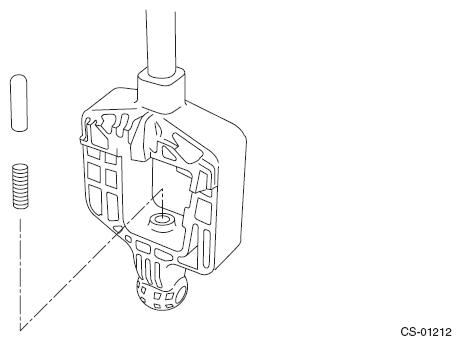

  16. Remove the rod detent and the detent spring.
    G07913122
