2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Shift the select lever to "N" range.
- Disconnect the ground cable from battery. Ref. to NOTE>BATTERYNOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). Ref. to EXHAUST(EXCEPT FOR STI)>Center Exhaust Pipe>REMOVAL

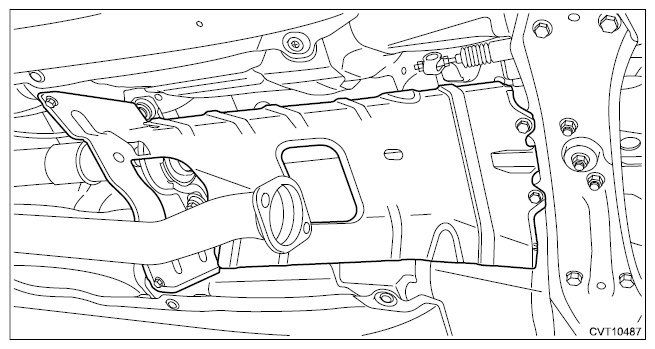

- Remove the center exhaust cover.

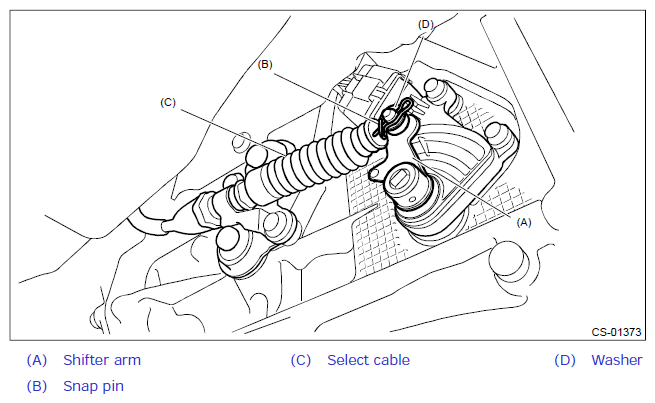

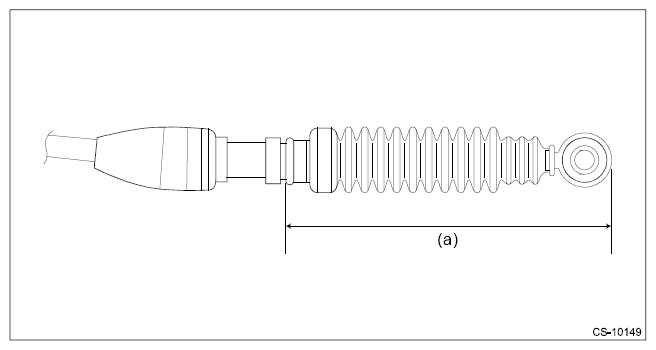

- Remove the snap pin and washer from the shifter arm.CAUTION: Do not apply extra overload while holding the part (a).
- Remove the plate assembly.

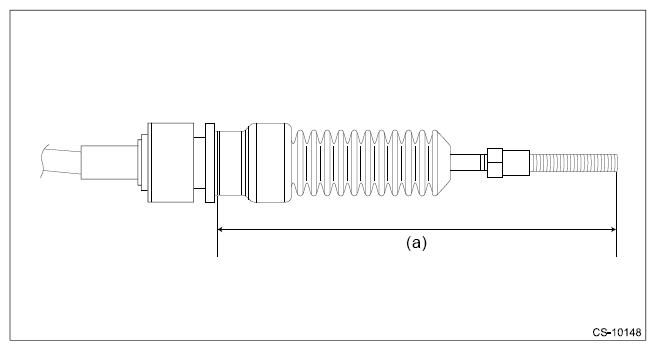

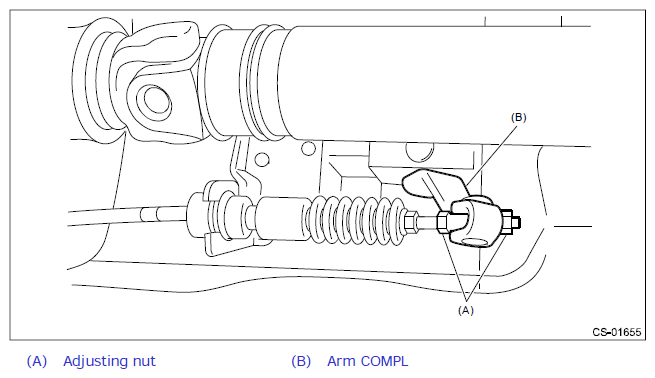

- Disconnect the cable from arm COMPL.CAUTION: Do not apply extra overload while holding the part (a).

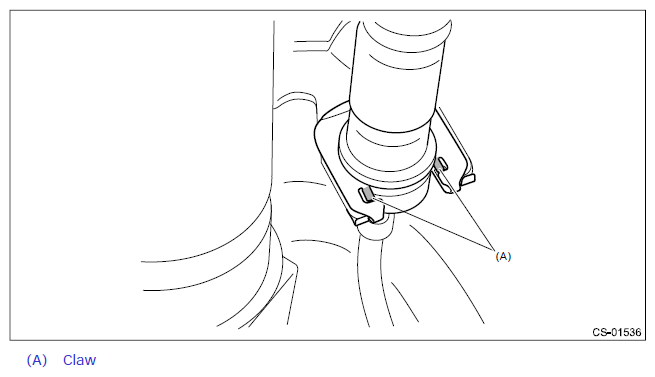

- Raise the claw of clamp and remove the cable.

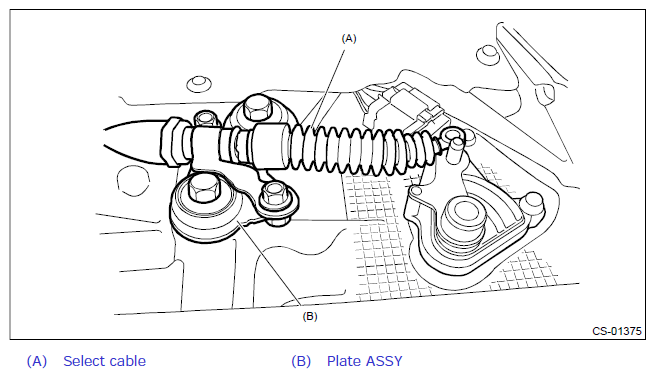

- Remove the select cable from plate assembly.
