2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Reverse Check Cable: Installation

  1. Insert the reverse check cable into the inner boot hole from underside of the vehicle.

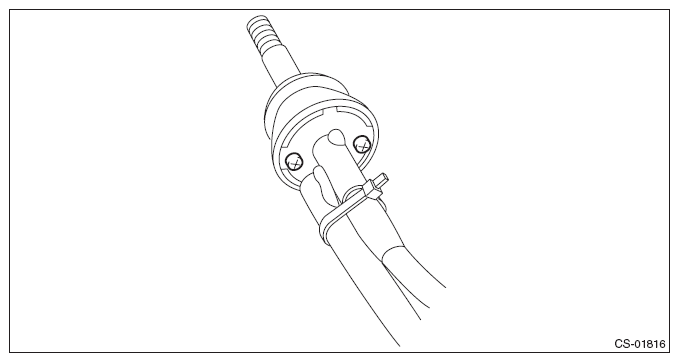

  2. Insert the reverse check cable into the gear shift lever assembly, and secure it with the band clip.
    NOTE:
    • Cut the excess band clip.
    • Make sure that the reverse check cable is inserted into the gearshift lever assembly with no gaps.
    G10267967

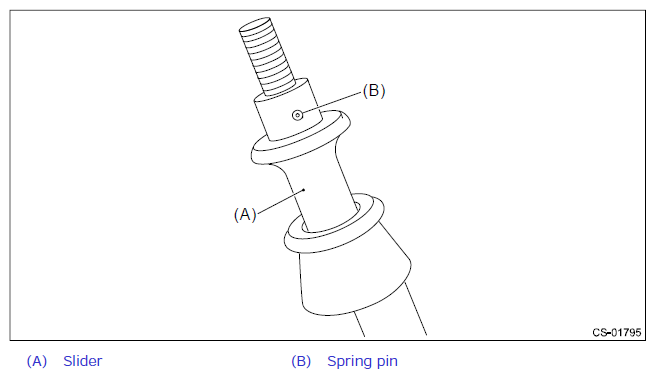

  3. Use the spring pin to secure the end of the slider and reverse check cable.
    NOTE: Apply grease to the moving part of slider.
    G12448460

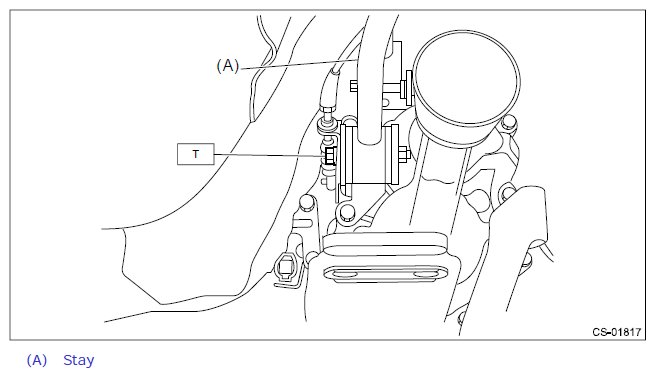

  4. Move the transmission to the right side, and install the stay.

    Tightening Torque:

    T: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

    G12448461

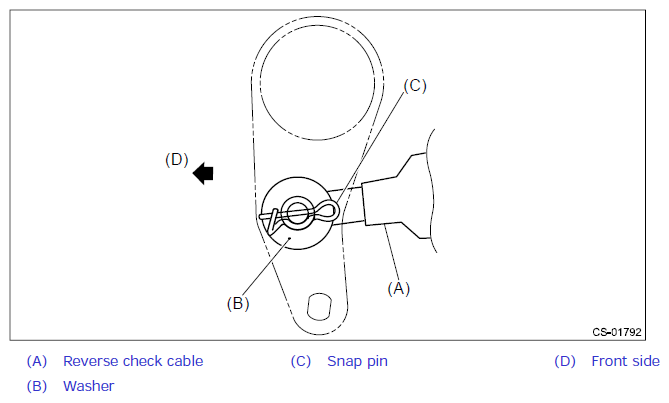

  5. Install the reverse check cable, washer and snap pin.
    NOTE: Make sure to point the snap pin in an appropriate direction.
    G12448462

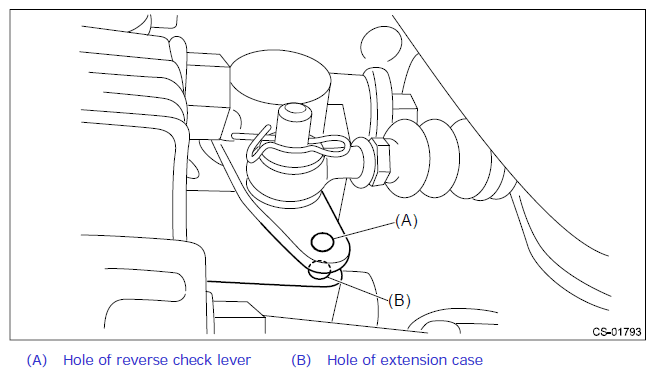

  6. Make sure the hole of extension case is aligned with that of reverse check lever. If the hole positions are not aligned, adjust the reverse check cable. Ref. to CONTROL SYSTEMS>Reverse Check Cable>ADJUSTMENT
    NOTE:
    • Check that the M3 bolt goes through the hole of reverse check lever and can be inserted into the hole of extension case.
    • When checking visually, confirm that the gap of hole positions is 0.5 mm (0.02 in) or less.
    G12448463

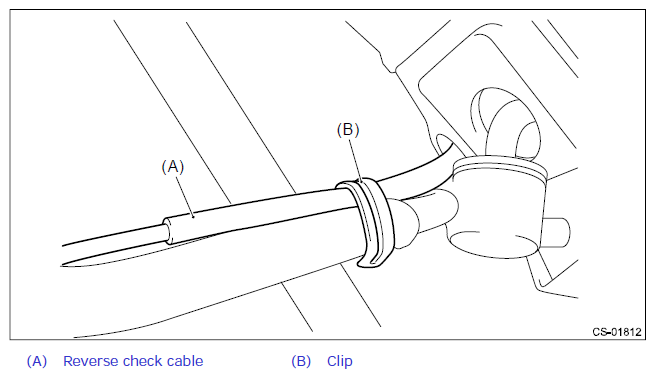

  7. Secure the reverse check cable to the stay clip.
    NOTE: Install the reverse check cable on top of the stay.
    G12448464
  8. Install the crossmember. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>Transmission Mounting System>INSTALLATION
  9. Install the center exhaust cover.

    Tightening Torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  10. Install the center exhaust pipe (rear). Ref. to EXHAUST(STI)>Center Exhaust Pipe>INSTALLATION
  11. Install the boot and insulator assembly, and secure with a clamp.

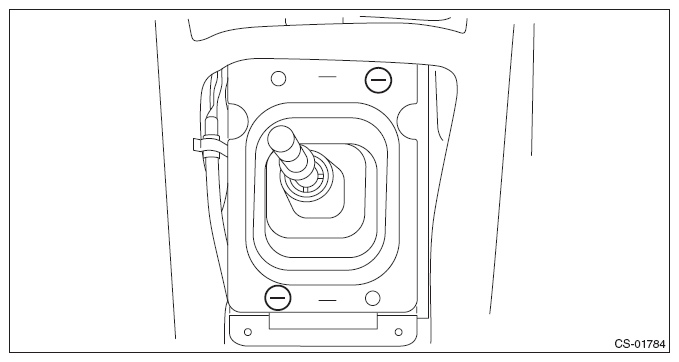

    G10267853
  12. Install the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION
  13. Install the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION
  14. Install the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION
  15. Install the gear shift knob by turning it clockwise.
    CAUTION: Do not turn the gear shift knob excessively to prevent it from being damaged.
  16. Connect the battery ground terminal. Ref. to NOTE>BATTERY
