Select Cable: Installation

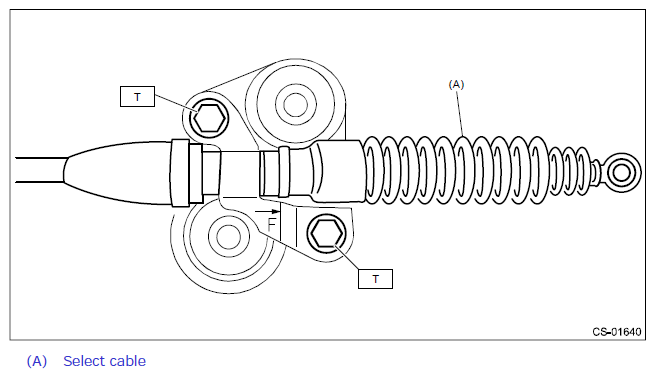

- Position the select cable as shown in the figure, and install it to the plate assembly.CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not forcibly turn the cable (wire side) to align the direction correctly.
Tightening Torque:
T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the select cable to the shifter arm.

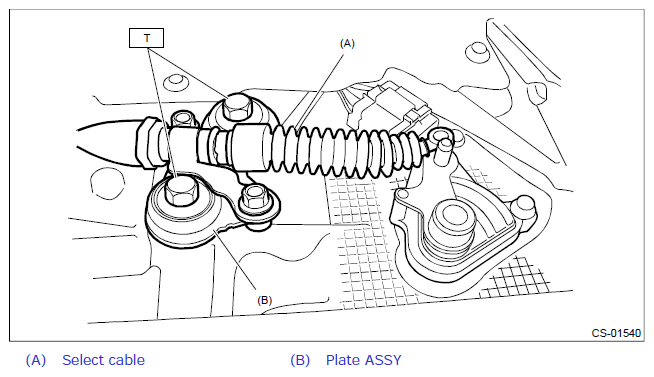

- Install the plate assembly.
Tightening Torque:
T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

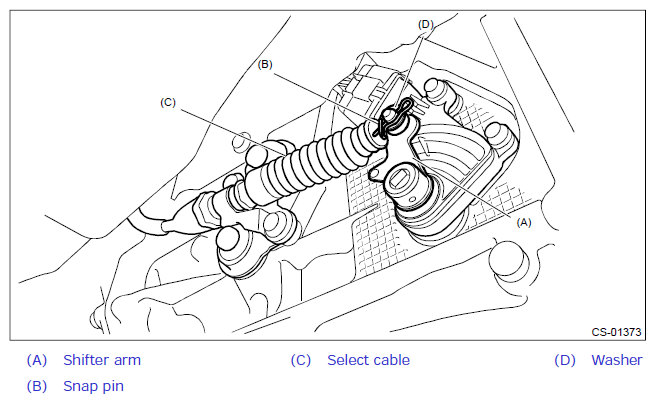

- Install the washer and snap pin to the shifter arm.CAUTION: Do not apply extra overload while holding the part (a).

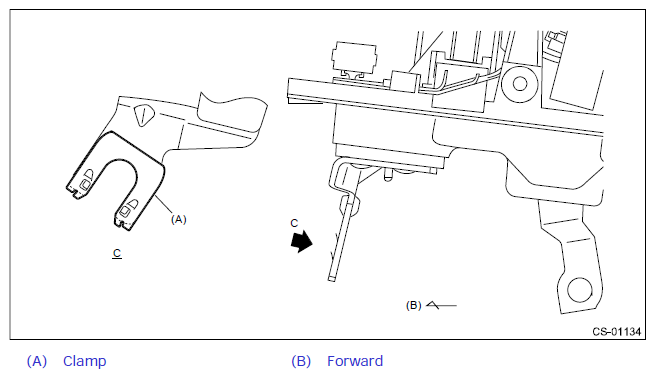

- Install new clamp paying attention to the installing direction.

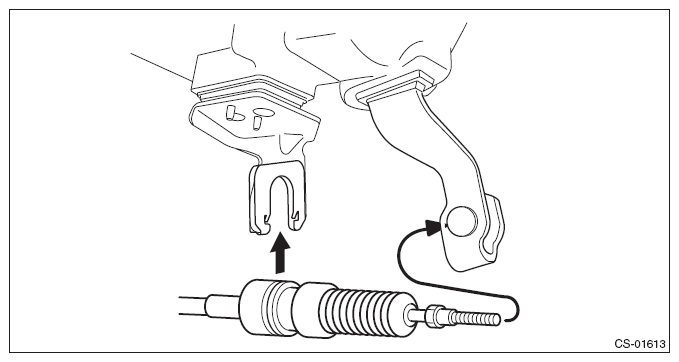

- Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.CAUTION: Do not apply extra overload while holding the part (a).
- Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to CONTROL SYSTEMS>Select Cable>ADJUSTMENT
- Install the center exhaust cover.
Tightening Torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the center exhaust pipe (rear). Ref. to EXHAUST(EXCEPT FOR STI)>Center Exhaust Pipe>INSTALLATION
- Lower the vehicle.
- Connect the battery ground terminal. Ref. to NOTE>BATTERY
