2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Select Lever: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe (rear). Ref. to EXHAUST(EXCEPT FOR STI)>Center Exhaust Pipe>REMOVAL
  5. Remove the center exhaust cover.
    G12448281

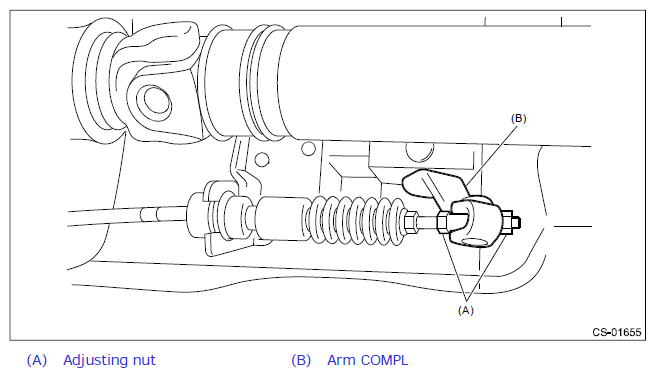

  6. Disconnect the cable from the arm COMPL.
    CAUTION: Do not apply extra overload while holding the part (a).
    G12392841
    G12448283

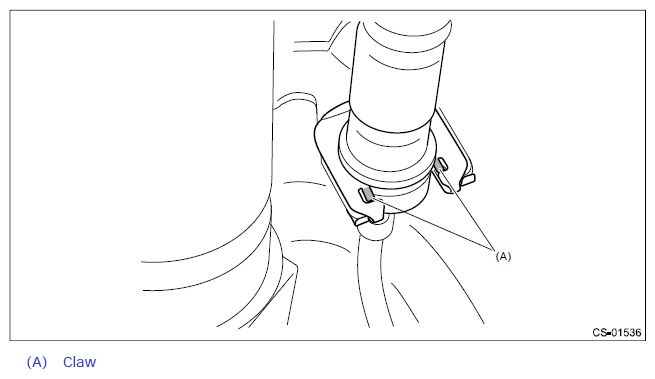

  7. Raise the claw of clamp and remove the cable.
    G12448284
  8. Lower the vehicle.
  9. Shift the select lever to "N" range.

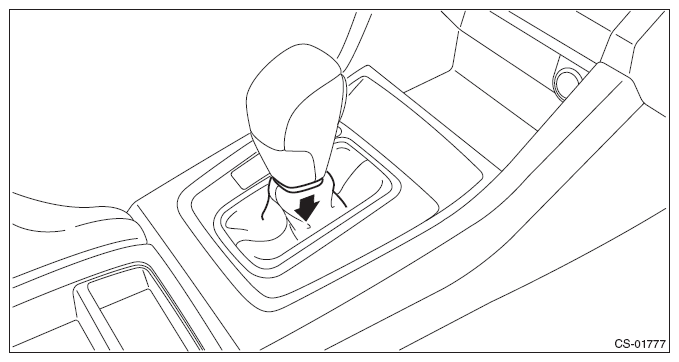

  10. Lower the boot assembly vertically toward the lever.
    G10267805

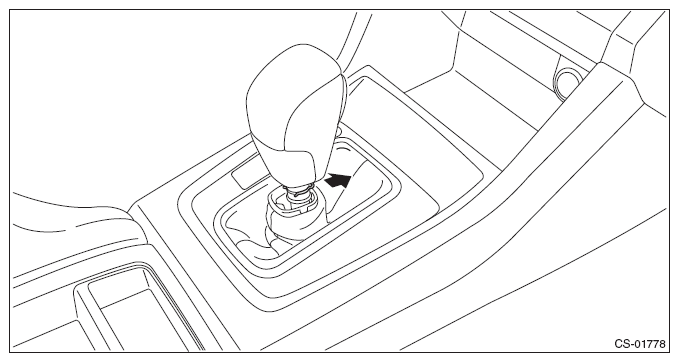

  11. Remove the clamp grip pin.
    G10267806

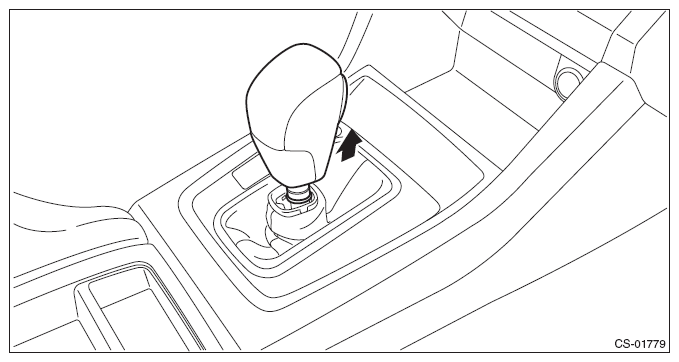

  12. Remove the grip assembly.
    G10267807
  13. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  14. Remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  15. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL

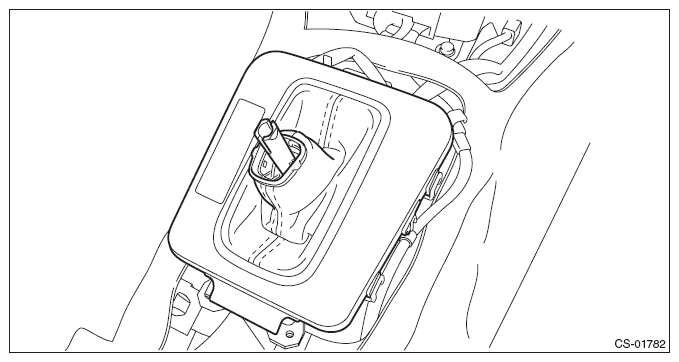

  16. Disconnect the connector, and remove the indicator assembly.
    G10267808

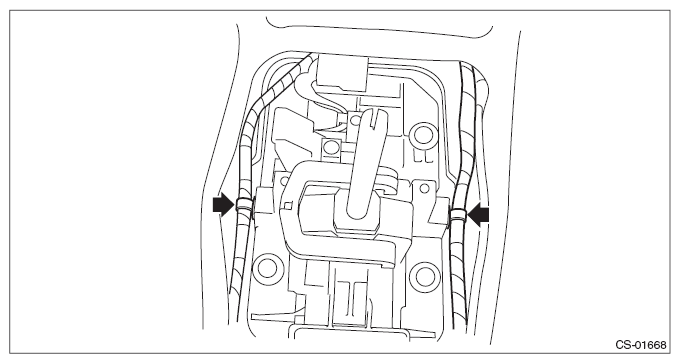

  17. Remove the harness clips.
    G09481160

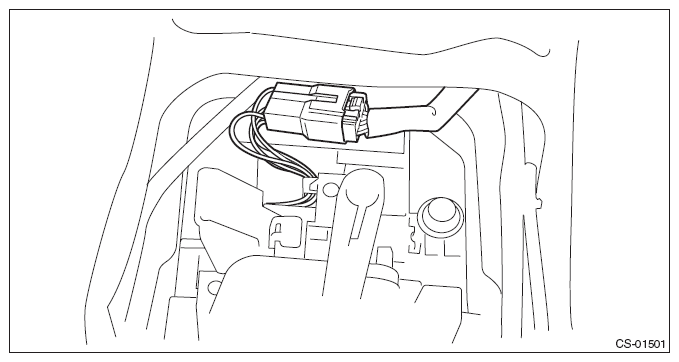

  18. Disconnect the harness connector.
    G08550574

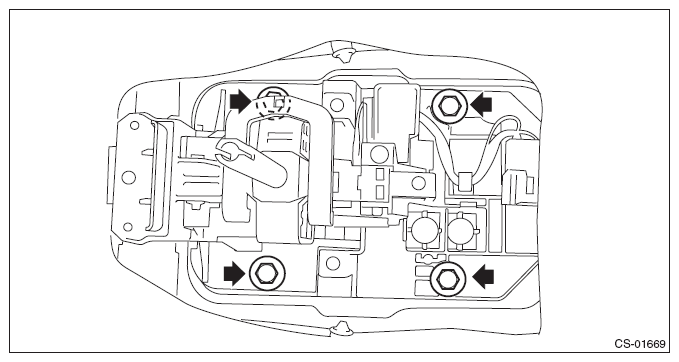

  19. Remove the select lever assembly.
    G09481162
