2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

Reverse Check Cable: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the gear shift knob by turning it counterclockwise.
  3. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  4. Remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  5. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  6. Remove the clamp.
    G10267853
  7. Remove the boot and insulator assembly.
    G10267854

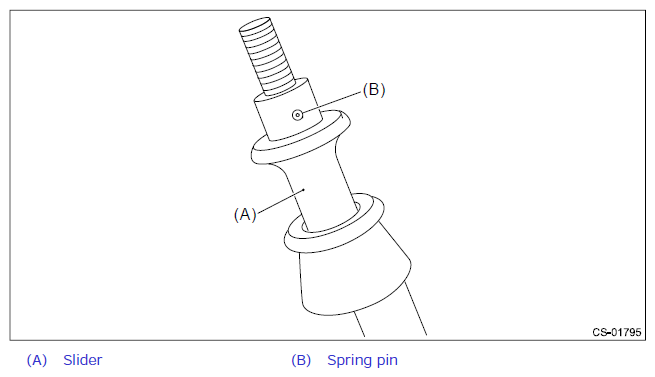

  8. Remove the spring pin from the slider.
    G12448451

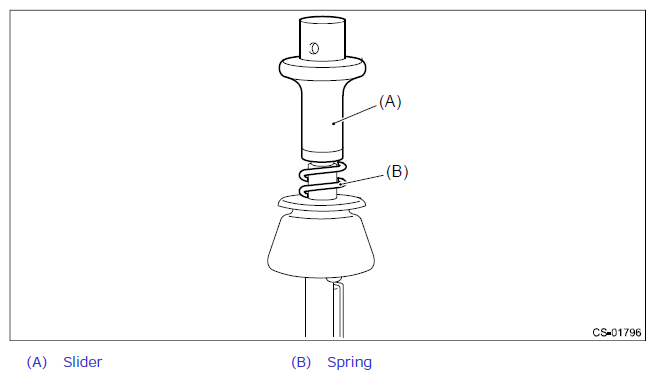

  9. Remove the slider and spring.
    G12448452
  10. Cut the band clip, and separate the reverse check cable from the gear shift lever.
    G10267874
  11. Lift up the vehicle.
  12. Remove the center exhaust pipe (rear). Ref. to EXHAUST(STI)>Center Exhaust Pipe>REMOVAL
  13. Remove the center exhaust cover.
    G08550630
  14. Remove the crossmember. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>Transmission Mounting System>REMOVAL

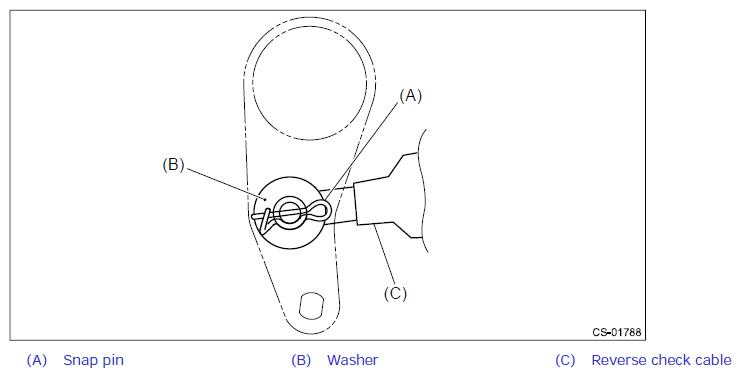

  15. Remove the snap pin and washer, and separate the reverse check cable.
    G12448455

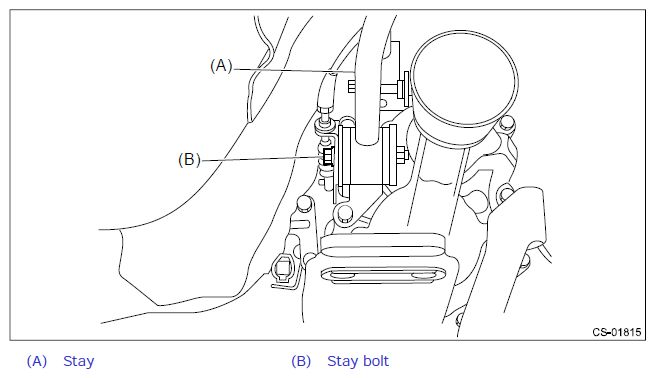

  16. Move the transmission to the right side, and remove the stay bolts and the reverse check cable.
    NOTE: If the transmission is not moved aside, the stay bolts may contact the body and cause damage.
    G12448456

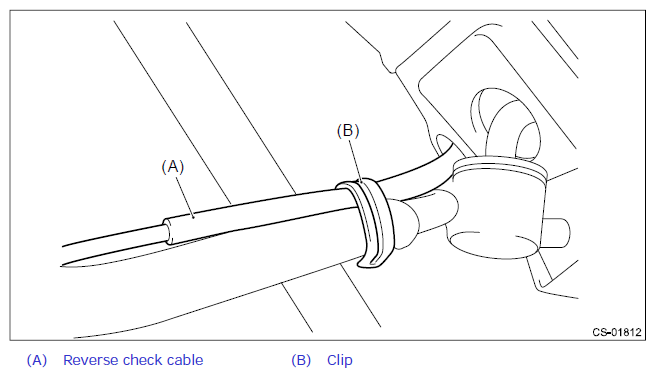

  17. Lift up the stay clip, and separate the stay from the reverse check cable.
    G12448457
  18. Pull out the reverse check cable from underside of the vehicle to remove it.
    NOTE: Be careful not to damage the inner boot.

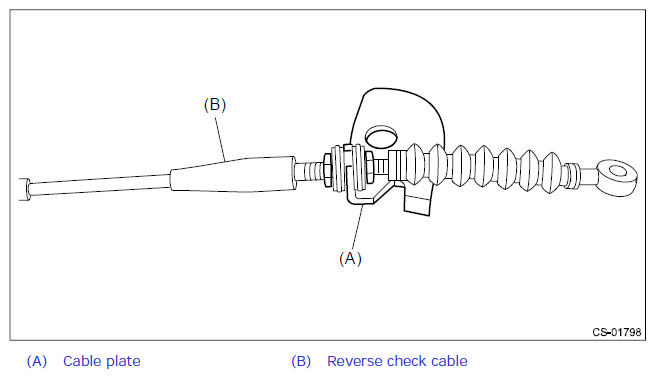

  19. Loosen the lock nut, and remove the reverse check cable from the cable plate.
    G12448458
