2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

MT Gear Shift Lever: Disassembly

NOTE: Disassemble procedures are only for STI model.

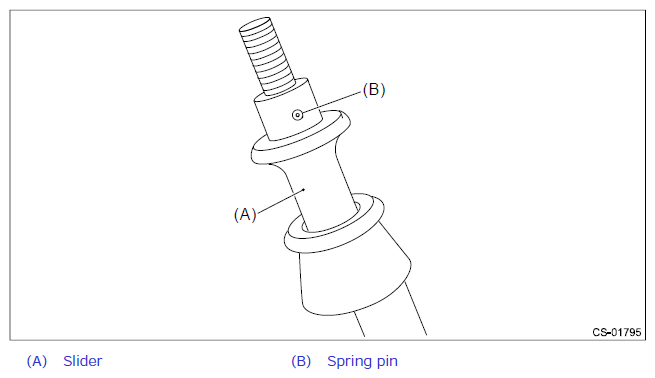

  1. Remove the spring pin from the slider.
    G12448358

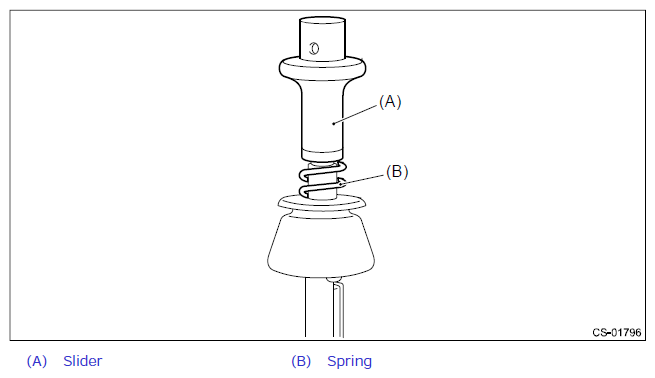

  2. Remove the slider and spring.
    G12448359

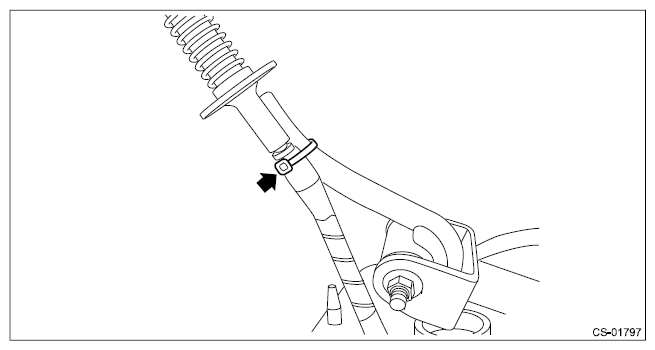

  3. Cut off the band clip.
    G12448360

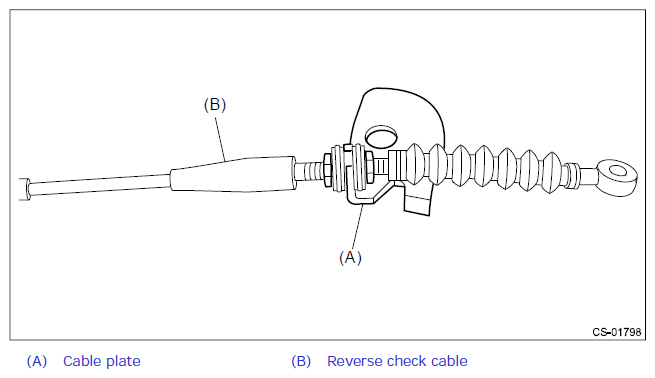

  4. Remove the reverse check cable from the cable plate.
    G12448361
  5. Remove the reverse check cable.
    G10267876

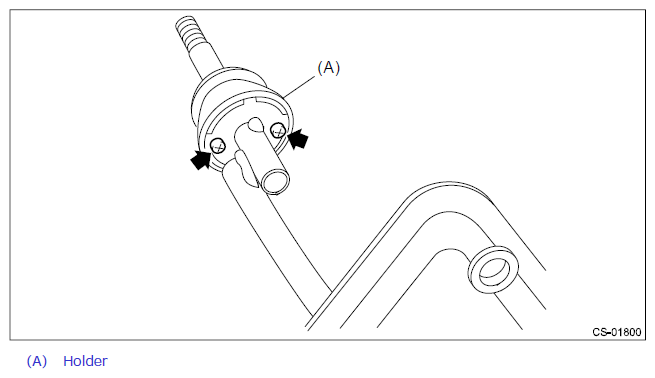

  6. Remove the holder and spring.
    G12448363

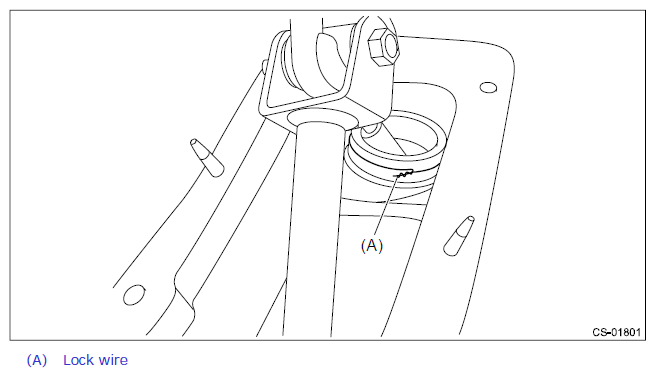

  7. Disassemble the lock wire.
    NOTE: Do not reuse the lock wire.
    G12448364

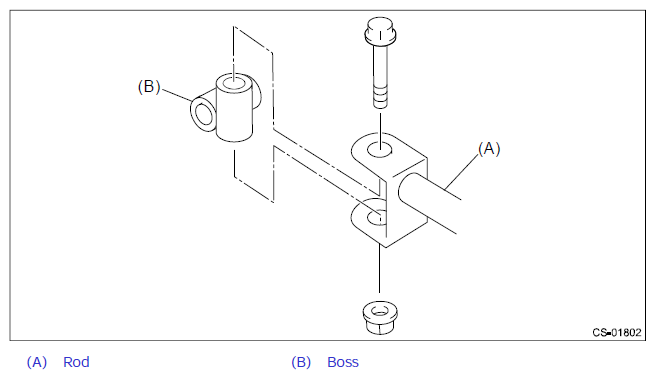

  8. Remove the boss from the rod.
    G12448365

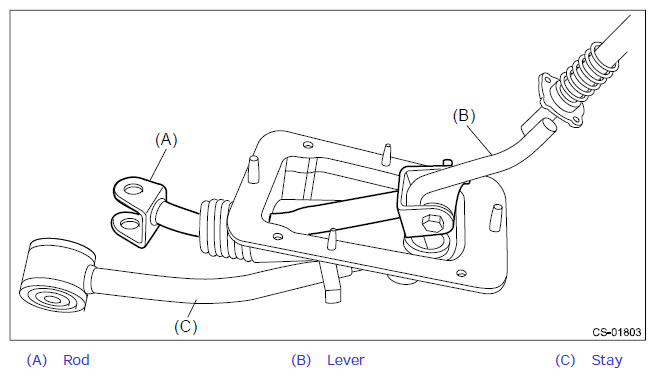

  9. Remove the rod from lever.
    G12448366
  10. Separate the rod and inner boot.

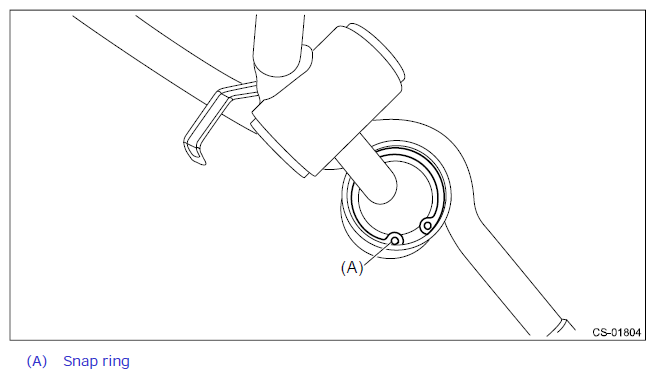

  11. Remove the snap ring.
    G12448367
  12. Separate the gear shift lever and the stay.
    G10267882

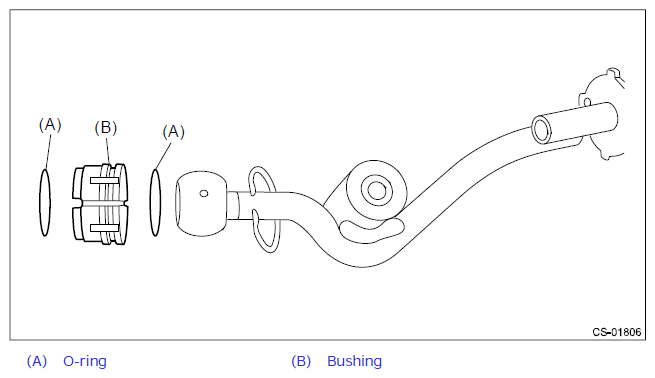

  13. Remove the O-ring and bushing.
    G12448369

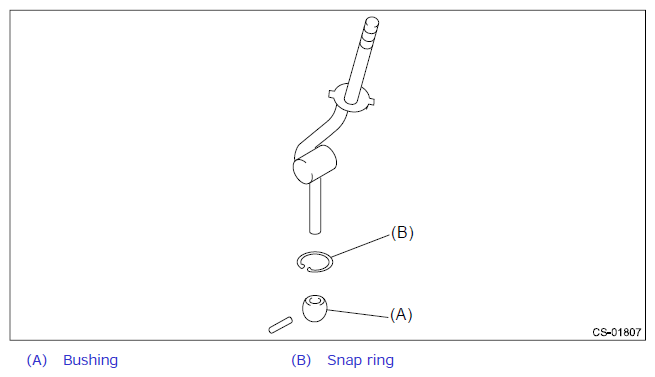

  14. Remove the spring pin, and then remove the bushing and snap ring.
    G12448370
  15. Remove the bushing and spacer from the boss.
    G12448371

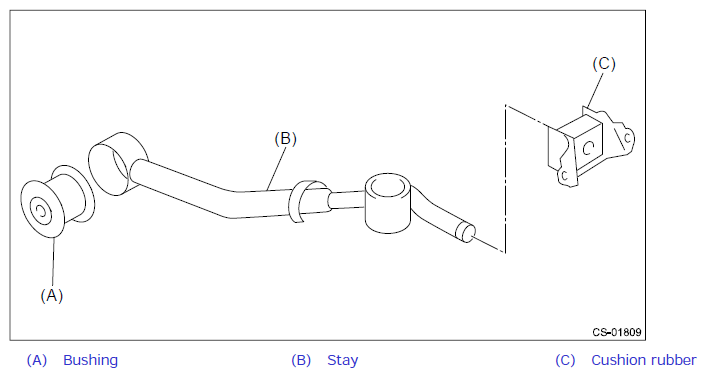

  16. Remove the bushing and cushion rubber from the stay.
    G12448372
