2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
MT Gear Shift Lever: Assembly
NOTE:
- Clean all the parts before assembly.
- Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. Ref. to CONTROL SYSTEMS>General Description>COMPONENT>6MT GEAR SHIFT LEVER (STI MODEL)

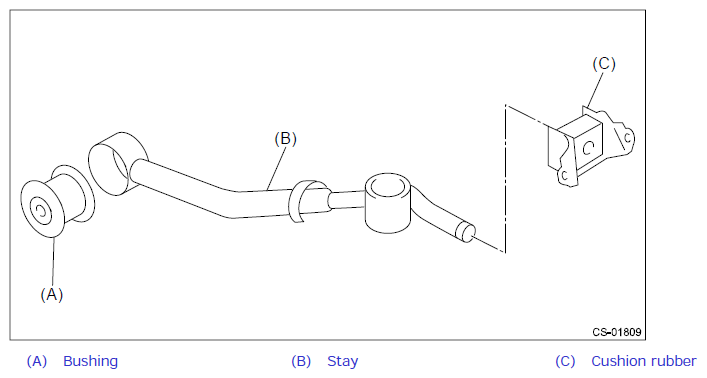

- Mount the bushing and cushion rubber to the stay.

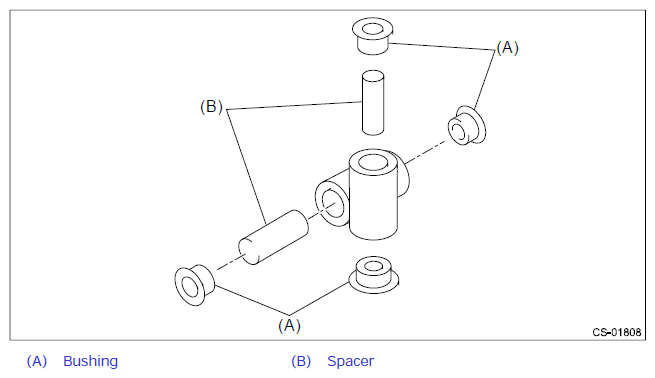

- Install the bushing and spacer to boss.

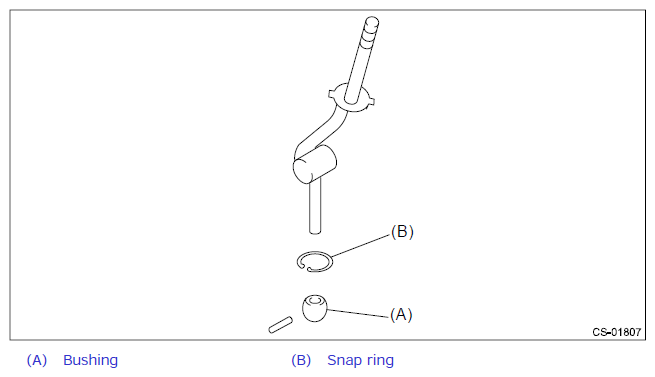

- Install the snap ring and install the bushing.NOTE: Apply grease to the bushing.

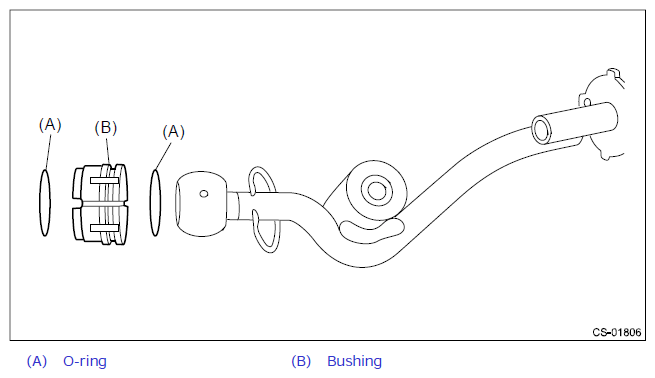

- Apply grease to the bushing and O-ring, and then install to gear shift lever.
- Apply sufficient grease into boss, and then install the gear shift lever to the stay.

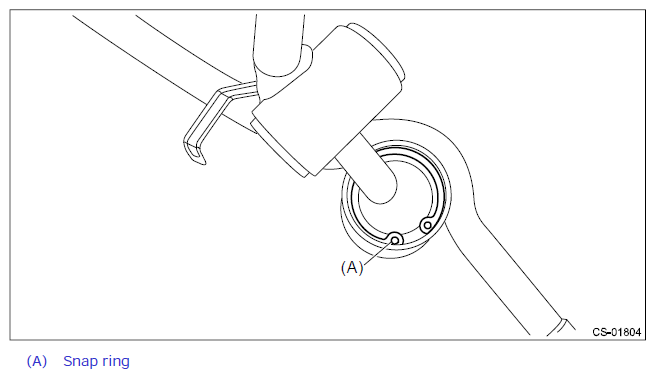

- Install the snap ring.
- Insert the gear shift lever and rod into boot hole.

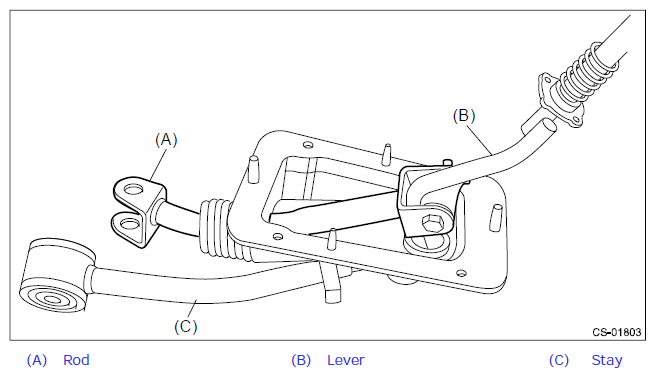

- Install the rod.
Tightening Torque:
12 N.m (1.2 kgf-m, 8.9 ft-lb)

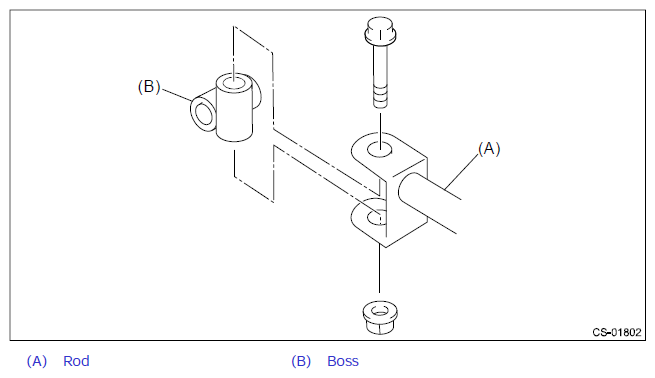

- Install the boss to the rod.
Tightening Torque:
12 N.m (1.2 kgf-m, 8.9 ft-lb)

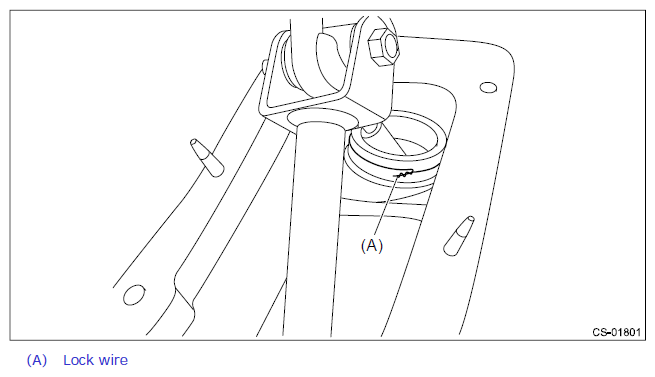

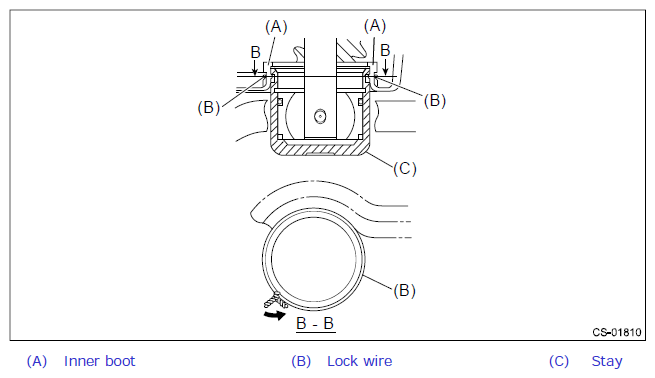

- Install a new lock wire.NOTE:
- Install the lock wire to the stay groove.
- Bend the extra wire to the same direction of lock wire winding.

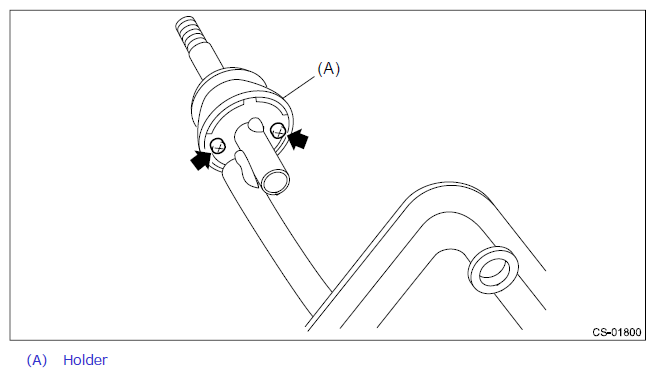

- Install the holder.
Tightening Torque:
1.3 N.m (0.1 kgf-m, 1.0 ft-lb)
- Insert the reverse check cable into the boot hole.
- Insert the reverse check cable into the gear shift assembly, and fix in place with a band clip.NOTE:
- Cut the excess band clip.
- Make sure that the reverse check cable is inserted into the gearshift lever assembly with no gaps.

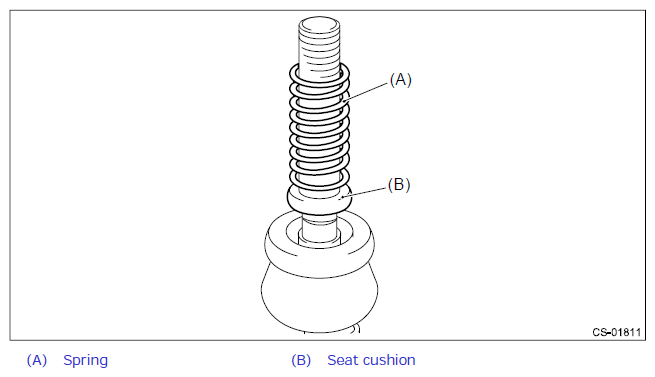

- Install the seat cushion and spring.

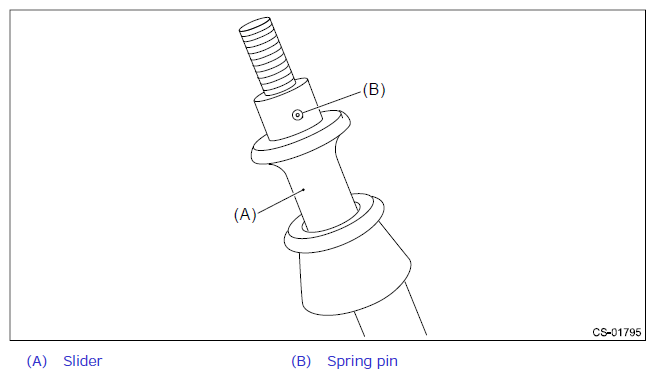

- Use the spring pin to secure the end of the slider and reverse check cable.NOTE: Apply grease to the moving part of slider.

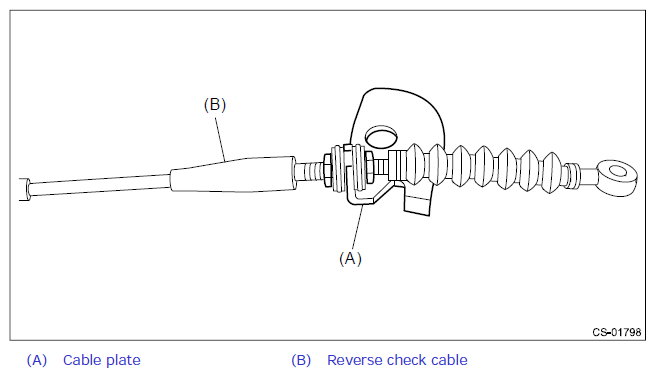

- Install the reverse check cable to the cable plate, and tighten the lock nut.
Tightening Torque:
6 N.m (0.6 kgf-m, 4.4 ft-lb)

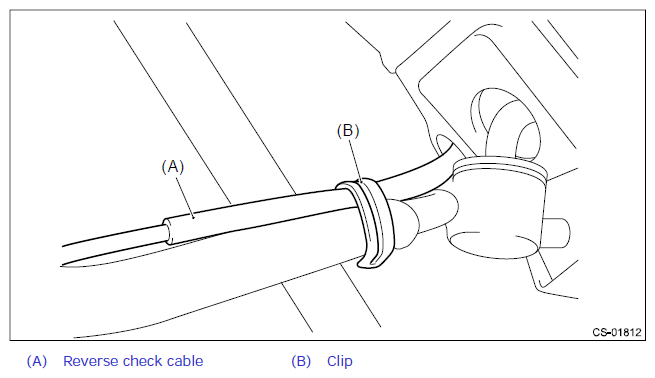

- Secure the reverse check cable to the stay clip.NOTE: Install the reverse check cable on top of the stay.
