2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Front Strut: Removal
- Lift up the vehicle, and then remove the front wheels.
- Remove the strut assembly.

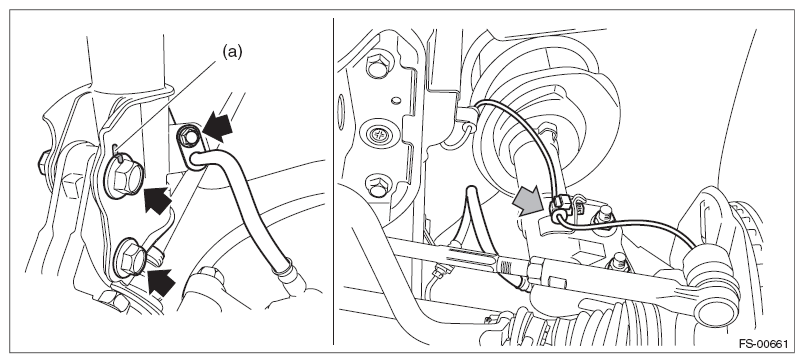

- Place an alignment mark (a) on the adjusting bolt and the strut.
- Remove the brake hose bracket.
- Remove the clamp of ABS wheel speed sensor harness.
- Remove the adjusting bolts and flange bolts for the strut assembly.CAUTION: While holding the adjusting bolt side, tighten the nut side.

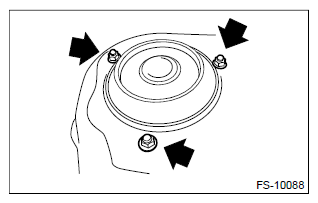

- Remove the three nuts securing strut mount to body.
