2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Front Strut: Disposal
CAUTION:
- Before handling the strut damper and shock absorber, be sure to wear goggles to protect eyes from gas, oil and cutting powder.
- Do not disassemble the strut damper and shock absorber or place them into a fire.
- When discarding gas filled strut dampers and shock absorbers, drill holes in them to purge the gas.
- Place the strut damper and shock absorber on a level surface with the piston rod fully expanded.

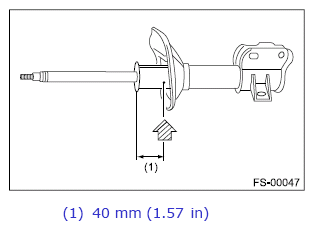

- Make a hole into the specified position 30 mm (1.18 in) deep using a drill with 2 - 3 mm (0.08 - 0.12 in) diameter. (standard damper model)

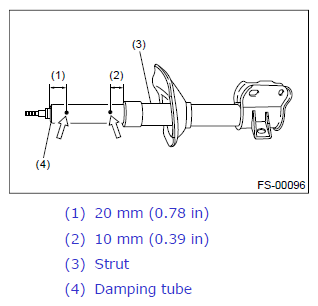

- Using a 2 - 3 mm (0.08 - 0.12 in) dia. drill, make a hole into the position (1) first, and then (2). (inverted damper model)
