2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Front Strut: Disassembly

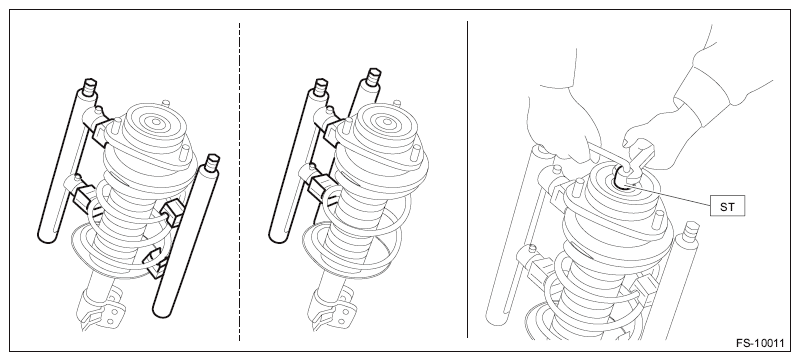

- Using a coil spring compressor, compress the coil spring.
- Using a hexagon wrench to prevent strut rod from turning, remove the self-locking nut with ST.CAUTION: When installing the coil spring compressor to the coil spring, follow the operation service information accompanied with the coil spring compressor during operation.
Preparation tool:
ST: STRUT MOUNT SOCKET (20399AG000)
NOTE: <Example of coil spring compressor installation>
The installing position of coil spring compressor varies depending on the coil spring shape and winding number. - Remove the strut mount - front, spacer - front strut, dust cover - front strut and spring seat - front strut UPR from the strut COMPL.
- Gradually decrease the compression force of compressor, and remove the coil spring.
- Remove the dust cover - inner and the helper - front strut.
