Front Stabilizer: Installation
- Before installation, inspect the following items and replace any faulty part with a new one.
- Check the bushing - stabilizer for abnormal cracks, fatigue or damage.
- Check the stabilizer link for damage.

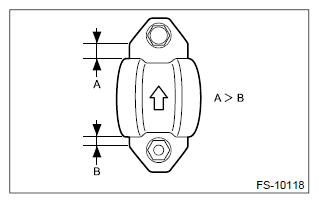

- Install the front stabilizer.CAUTION: Install the clamp - stabilizer bushing with the arrow mark facing the front of the vehicle.
Tightening Torque:
Stabilizer link: 60 N.m (6.1 kgf-m, 44.3 ft-lb)
Clamp - stabilizer: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the front crossmember support.
Tightening Torque:
Refer to "COMPONENT" of "General Description" for the Tightening Torque. Ref. to FRONT SUSPENSION>General Description>COMPONENT>FRONT SUSPENSION .
- Install the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
- Lower the vehicle, and install the front wheels.
Tightening Torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
