Drive Cycle F
| DTC | Item | Condition |
|---|---|---|
| P0096 | INTAKE AIR TEMPERATURE SENSOR 2 CIRCUIT RANGE/PERFORMANCE BANK 1 |
|
| P0111 | INTAKE AIR TEMPERATURE SENSOR 1 CIRCUIT RANGE/PERFORMANCE BANK 1 |
|
Diagnostic procedure:
- With the ignition switch ON (engine stopped), read the value in «Coolant Temp.» and «IAT Sensor #11». Ref. to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>Subaru Select Monitor>OPERATION>DISPLAY CURRENT ENGINE DATA .
- If the values from step 1) satisfy the following conditions, idle the engine for two minutes or more.
Condition:
|Engine coolant temperature - Intake air temperature| = 5°C (9°F)
NOTE:- If the conditions are not satisfied, turn the ignition switch to OFF and wait until the parameters are satisfied.
- For CVT models, hold the select lever to "P" range or "N" range at idling, and for MT models, the gear shift lever in the neutral position at idling.

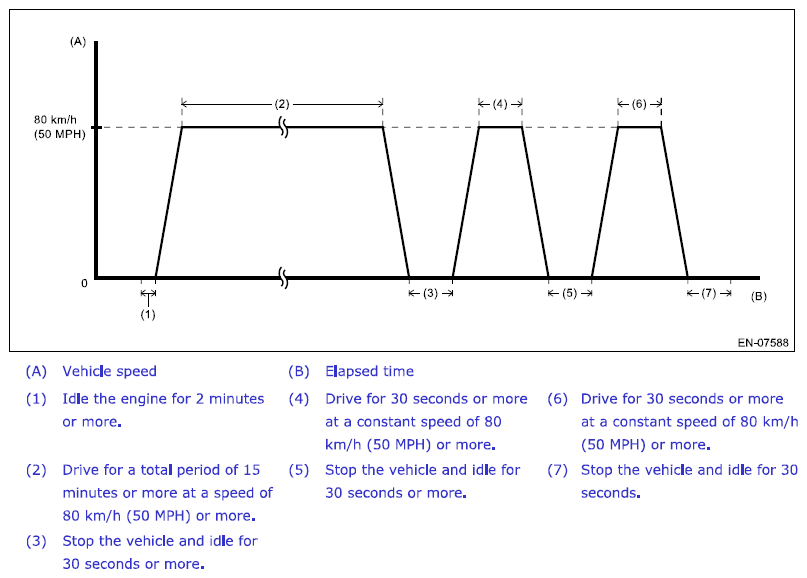

- Drive according to the drive pattern described below.NOTE:
- In pattern (2), it is acceptable to decelerate to less than 80 km/h (50 MPH) or to stop the vehicle depending on the traffic conditions. Drive the vehicle at 80 km/h (50 MPH) or more until the total driving time reaches or exceeds 15 minutes.
- There is no given transition time between idling and cruising.
- Driving at constant speed only on a downhill causes smaller engine load and may result in failure to obtain a right diagnostic result.
- When the engine stops while performing drive cycle F, perform it again from the state of procedure 1).
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>Read Diagnostic Trouble Code (DTC)>OPERATION .
