2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.

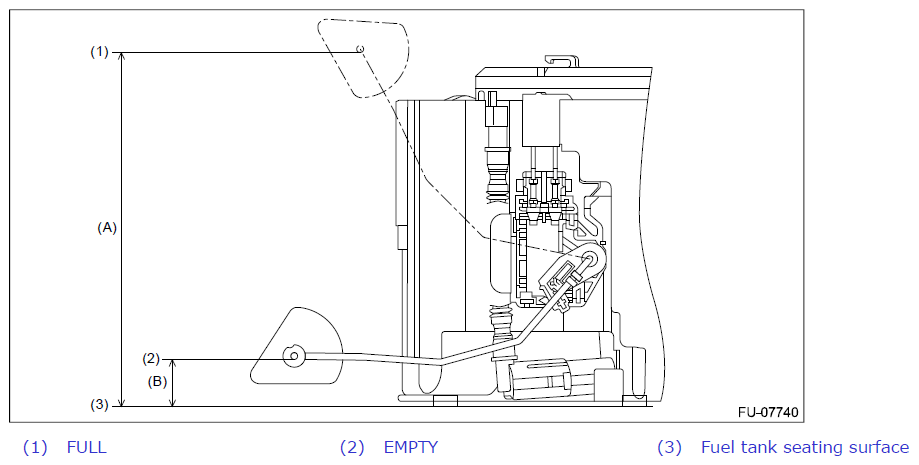

- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.
FLOAT POSITION STANDARD FULL to Fuel tank seating surface (A) 133.0Β±4 mm (5.236Β±0.157 in) EMPTY to Fuel tank seating surface (B) 21.6Β±4 mm (0.850Β±0.157 in) - Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
FLOAT POSITION TERMINAL NO. STANDARD FULL (A) 1 and 2 8.7Β±1.0 Ξ© EMPTY (B) 139.1Β±2.0 Ξ©
