2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
VDC OFF Switch: Inspection
- Remove the VDC OFF switch. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC OFF Switch>REMOVALΒ .

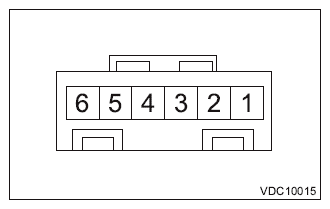

- Measure the resistance between the VDC OFF switch terminals.
Preparation tool:
Circuit tester
TERMINAL NO. INSPECTION CONDITIONS STANDARD 5 - 6 Switch OFF 1 MΞ© or more Switch ON Less than 1 Ξ© NOTE: Replace the VDC OFF switch if the inspection result is not within the standard value. - Install the VDC OFF switch. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC OFF Switch>REMOVALΒ .
