2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Steering Angle Sensor: Removal
CAUTION:
- If the steering wheel and steering angle sensor are removed, perform "VSC (VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDC CONTROL MODULE & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
- Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
- Always use the steering wheel puller for removal to avoid deforming the steering wheel.
- If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.
- Position the front wheels straight ahead.
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>Driver's Airbag Module>REMOVAL .
- Remove the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING) >Steering Wheel>REMOVAL .

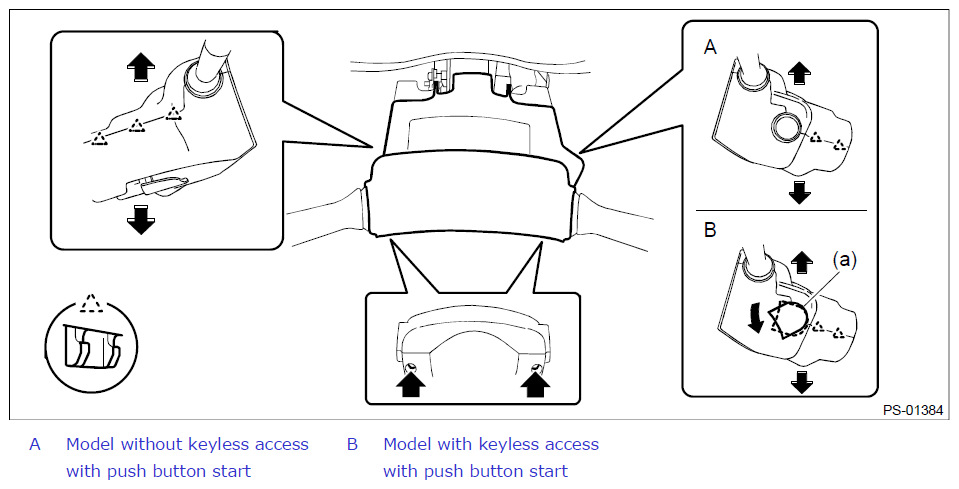

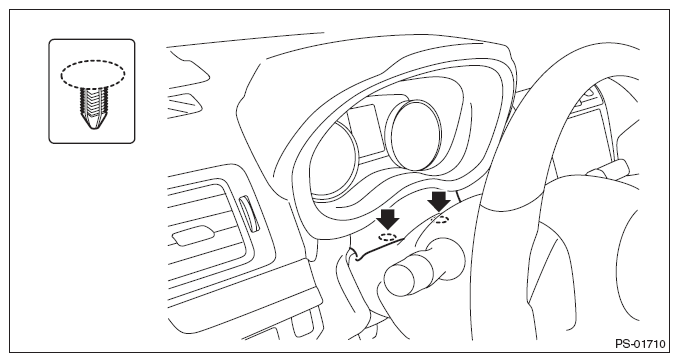

- Remove the cover assembly - column.

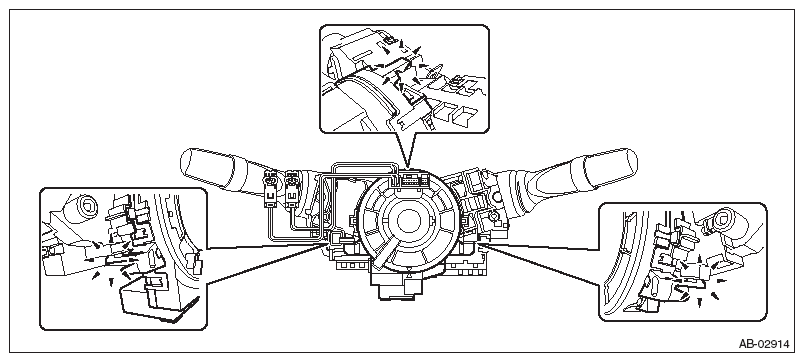

- Remove the steering roll connector.CAUTION: Make sure that the steering roll connector is not turned from the original position.

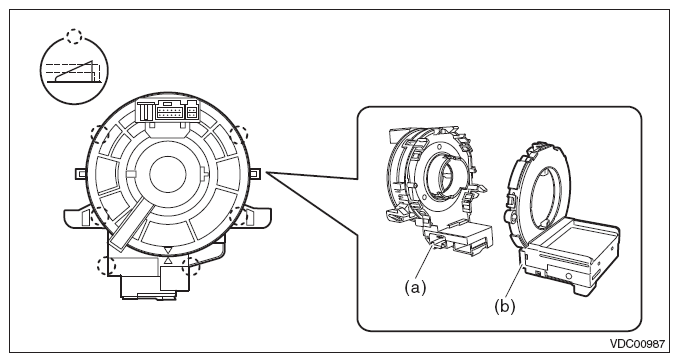

- Remove the steering angle sensor.
