2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

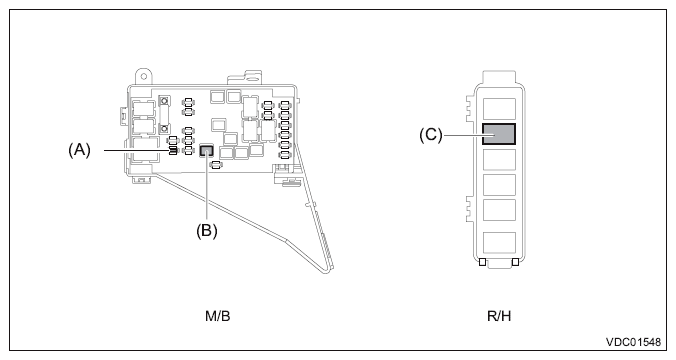

Relay And Fuse: Location
| Main Fuse Box | Fuse 30A (VDC CONTROL MODULE & H/U) | (A) | ||
| Fuse 40 A (VDC CONTROL MODULE & H/U) | (B) | |||
| Relay Holder | Brake Light Relay(1) | (C) | ||
|
||||
NOTE:
For other related fuses, refer to the wiring system. Ref. to WIRING SYSTEM>Power Supply Circuit
.
