2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

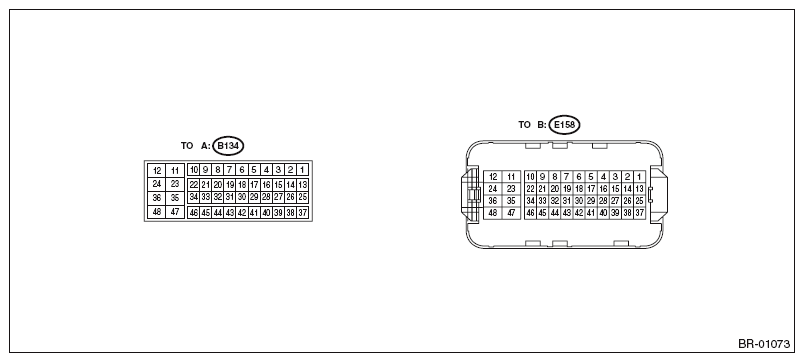

Electrical Specification
| Description | Connector No. | Terminal No. | Signal (V) | Note | ||
|---|---|---|---|---|---|---|
| Ignition SW ON (Engine OFF) |
Engine ON (Idling) |
|||||
| Brake booster pressure sensor | Signal | E158 | 13 | 1 - 3.8 | 1 - 3.8 | - |
| Power supply | B134 | 18 | 5 | 5 | - | |
| Ground | B134 | 19 | 0 | 0 | - | |
| Self-shutoff control | B134 | 38 | 0 | 0 | - | |
| Brake vacuum pump | Relay drive | E158 | 37 | 10 - 13 (When pump is OFF) |
12 - 14 (When pump is ON) |
- |
| 0 (When pump is ON) | 0 (When pump is ON) | |||||
| Electric load | E158 | 1 | 0 (When pump is OFF) | 0 (When pump is OFF) | - | |
| 10 - 13 (When pump is ON) |
12 - 14 (When pump is ON) |
|||||
