2018 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE
Keyless Entry Control Module

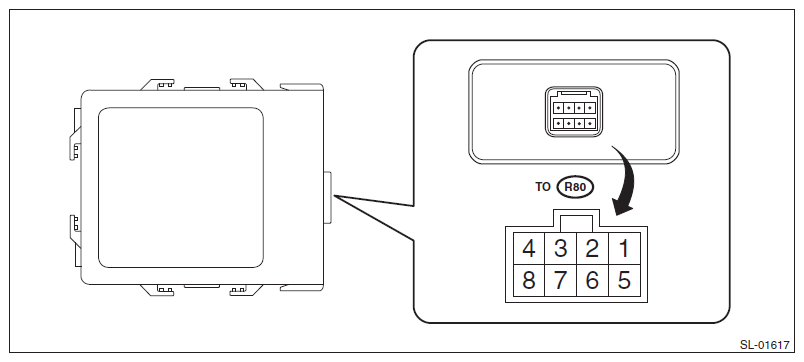

- Model without tire pressure monitoring system
Terminal No. Item Measuring condition Standard 3 (U-ART com.) - Cannot be measured - 4 (+B) ββ Chassis ground Voltage Always 10 - 14 V 7 (GND) ββ Chassis ground Resistance Always Less than 1 Ξ© - Model with tire pressure monitoring system

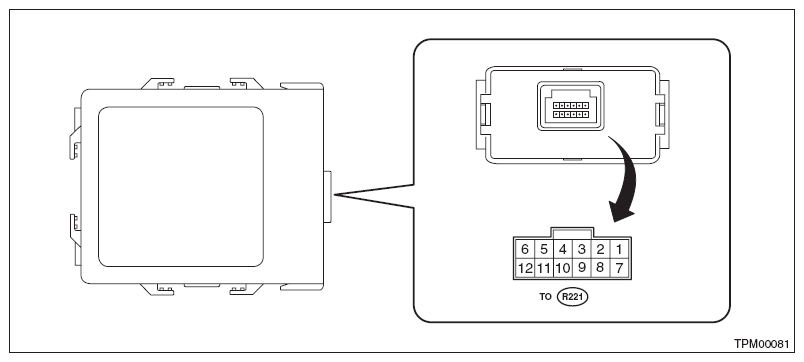

Terminal No. Item Measuring condition Standard 4 (IG) ββ Chassis ground Voltage IG OFF β ON 0 V β 10 - 14 V 5 (GND) ββ Chassis ground Resistance Always Less than 1 Ξ© 6 (+B) ββ Chassis ground Voltage Always 10 - 14 V 11 (U-ART com.) - Cannot be measured -
