2018 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE
At Select Lever Assembly

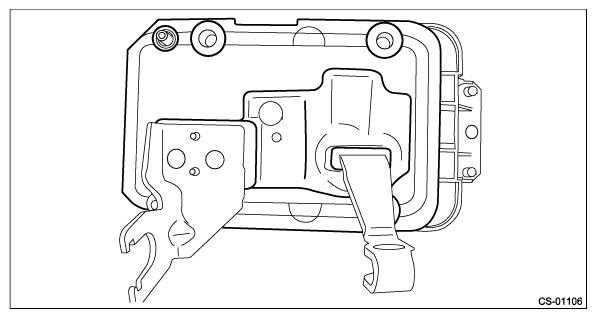

- Remove the spacer plate.
- Remove the gasket.

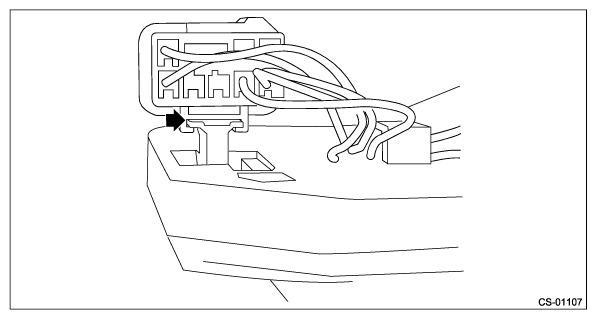

- Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector from the plate COMPL.

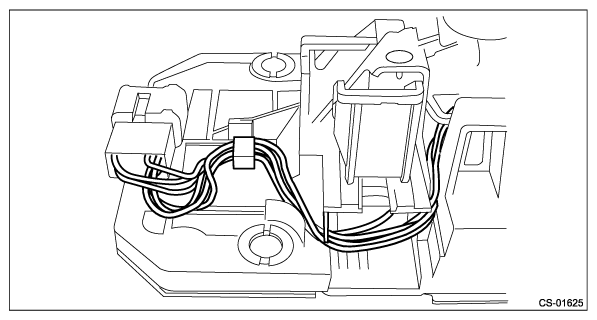

- Remove the harness from the plate COMPL.

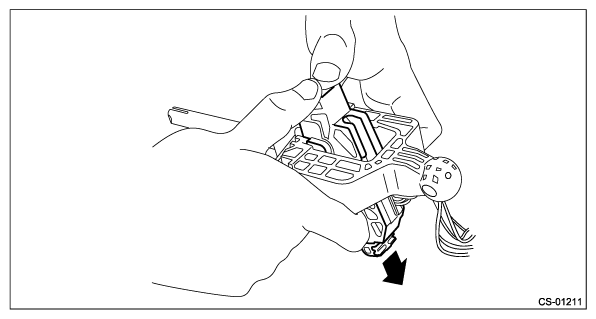

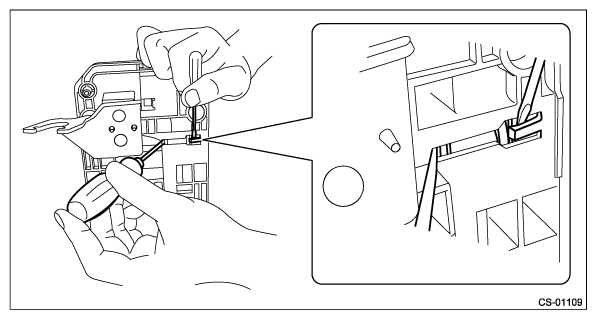

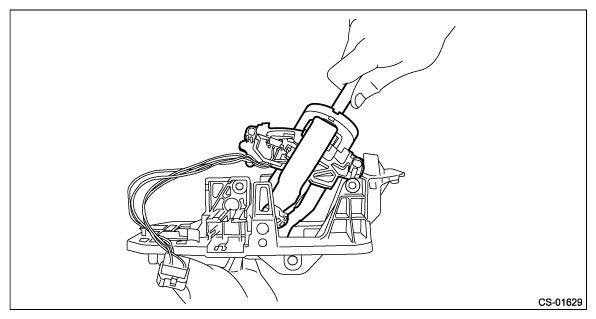

- Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

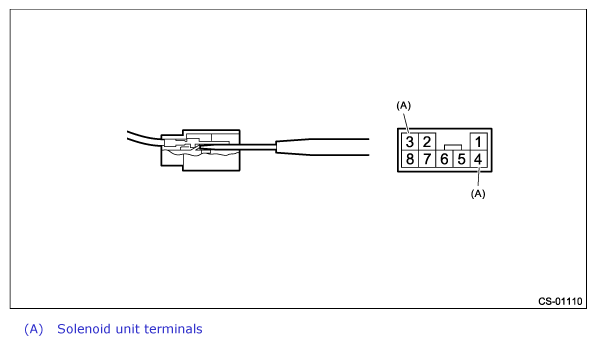

- Using a flat tip screwdriver with a thin tip, remove the solenoid unit terminals from the connector.

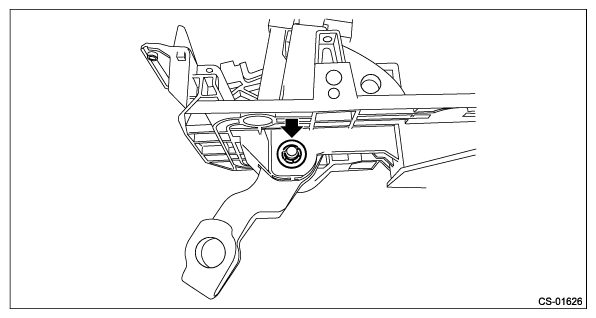

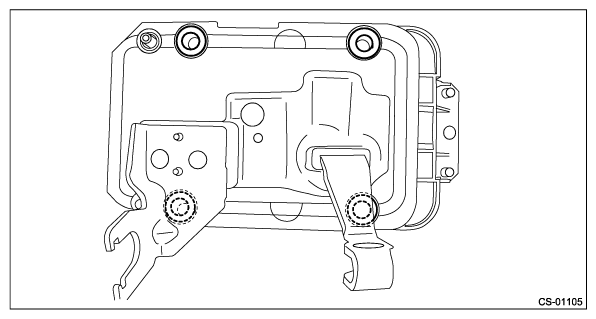

- Remove the clamp push nut.NOTE: Replace the clamp push nut with a new part.

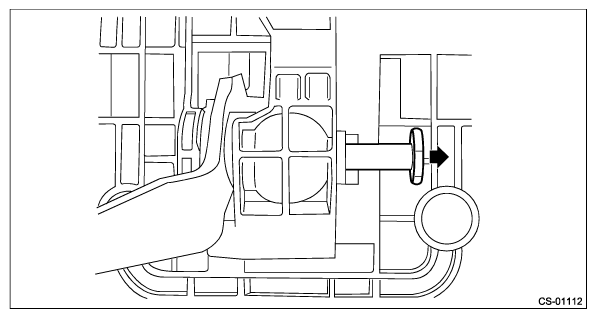

- Pull out shaft control.
- Remove the clamp push nut.NOTE: Replace the clamp push nut with a new part.

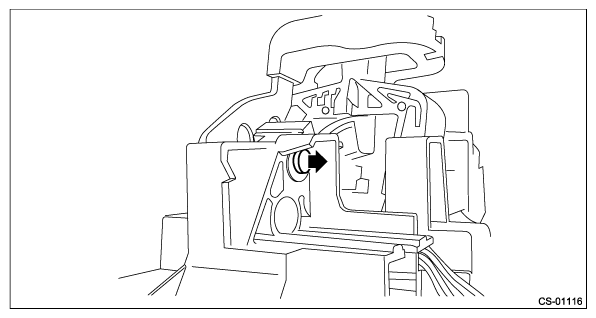

- Pull out spacer pin guide.

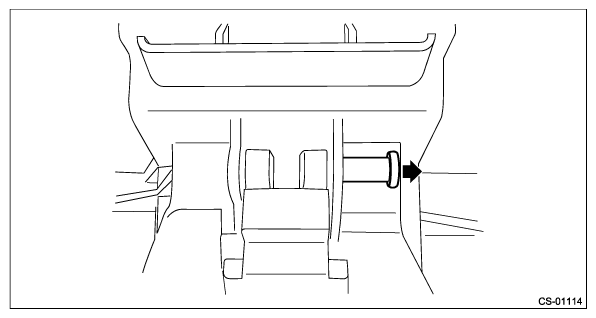

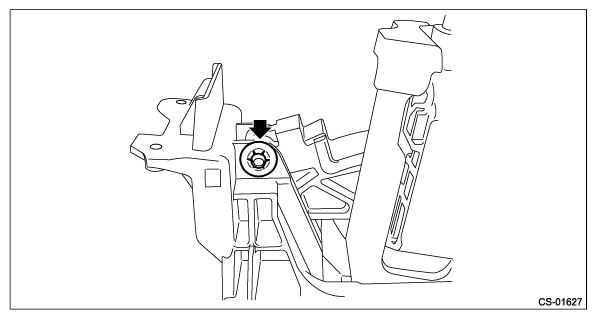

- Remove the clamp pin.

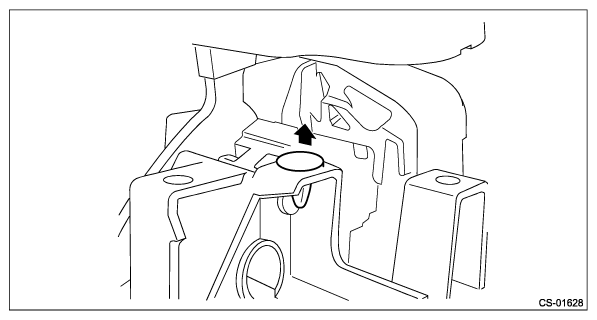

- Remove the spacer pin guide.
- Remove the select lever COMPL from the plate COMPL.

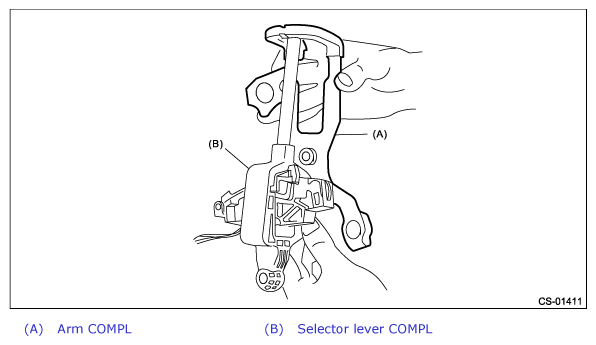

- Remove the arm COMPL.
- Remove the plate guide from the select lever COMPL.

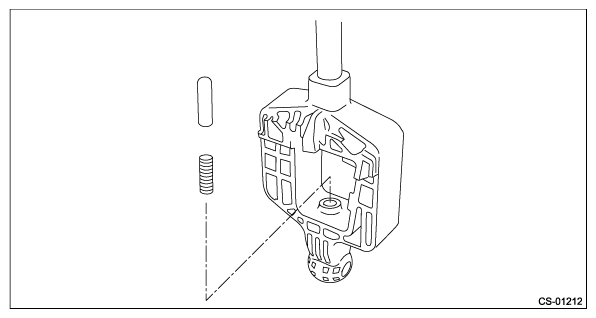

- Remove the rod detent and detent spring from the select lever COMPL.
